Business Analytics from Application Logs and SQL Server Database using Splunk

,

Introduction

Splunk is a well-known log management tool. Splunk mines log from different machines in real-time and can be used to monitor, search, and analyze gathered data. It is a Big Data log management tool that can give insight from the unstructured data stored in the Splunk indexes. Splunk analytics helps turn unstructured log data into knowledge that enterprises can use to derive business value. In addition, it’s a great tool to monitor and report for making knowledgeable decisions and help in alerting so that corrective actions can be taken when the system is underperforming.

Splunk is not only a great tool for log analytics but also being used heavily as a SEIM (security event and incident management) tool. As a result, Splunk is placed in the leader quadrant of the Gartner Magic Quadrant. This article will show how easy it is to use Splunk to gain insight into IT systems. How can we create reports, how can we create a dashboard, and how can we set alerts can be set? To create Splunk reports, we need to know the intermediate level of Regex. This article aims not to teach but to show how to use Splunk to get analytics out of application log files.

Solution

Data Analytics can be Descriptive, Diagnostic, Predictive, or Prescriptive. Using Splunk, a business can create reports and alerts that can help in getting these types of analytical insights. Splunk can not only gather insights from application logs but can also connect to the database and can either pull the data from it or push data to it.

In this article we will be looking into 3 aspects of Business Analytics using Splunk:

  1. Connect to application logs, generate reports, and create a dashboard
  2. Connect to MS SQL Server database, mine the data, and present it in a report in the dashboard
  3. Set up an alert so that the IT team or business can be notified of a specific event

Connect to application logs, generate reports, and create a dashboard

We will first import a log file that has application records. Once the data is in Splunk, I will be using Regex to create reports and a dashboard. Data that this log file consists of is of a fictitious company called “Awesome Insurance Company”.

When creating a dashboard, we can create a report as an event, table, chart, single value. An event is the single transaction or item stored in the log file. I will show single value, table, comparison, event, and charts reports.

Connect to an Application and Mine logfiles

The first step is to setup an application so that the log file can be mined. Configure a Splunk forwarder on your app server and configure inputs.conf to make sure the application log can be mined and pushed to a Splunk Index. For this test, I used the Data Inputs to import a log file.

When in “Files & directories”, click on “New Local File & Directory”. Select the logfile that needs to be mined and select if it needs to be continuously monitored or indexed only once.

After clicking on Next, we can use event breaks if required and then provide the name of the Source Type. Clicking Next will lead to Input Settings like Index, App context, etc. Once setup is complete, we get details of the index.

Index Details:

Host: AppServer01
Source Path: C:\Awesome\awesome_log.txt
Source Type: Awesome_SourceType
Index: awesome_index

Create Splunk reports

We can use regex to create Splunk reports. Reports can be generated from the data stored in a Splunk Index. Below are the Report Name, Report Type, and Script that we can use to create these Splunk reports. Splunk reports can be more complex, but this article aims to show how to create different reports and present them in the Splunk dashboard.

Report NameReport TypeScript
Daily Approved PoliciesTable
index=awesome_index "Policy Transaction completed successfully" AND "status=approved"
| rex "transactionDate=(?<Date>[^,]+)."
| rex "policyType=(?<PolicyType>[^,]+)."
| rex "policyAmt=(?<Amount>[^,]+)." | eval sum(Amount)=round(sum(Amount),2)
| table Date PolicyType sum(Amount)
Policy TypeComparisons - Pie
index=awesome_index "Claims Transaction completed successfully" | stats count by policyType
Claim TypeComparisons - Pie
index=awesome_index "Policy Transaction completed successfully" | stats count by policyType
Approved ClaimsTable
index=awesome_index "Claims Transaction completed successfully" AND "claimStatus=Approved"
| rex "transactionDate=(?<Date>[^,]+)."
| rex "policyType=(?<PolicyType>[^,]+)."
| rex "policyAmt=(?<Amount>[^,]+)." | eval sum(Amount)=round(sum(Amount),2)
| table Date PolicyType sum(Amount)
Policy Transaction FailureTable
index=awesome_index Policy Account creation failed
| rex "policyType=(?<PolicyType>[^,]+)."
| rex "accountNumber=(?<Account>[^,]+)."
| rex "reason=(?<Reason>[^,]+)."
| rex "createdDate=(?<Date>[^,]+)."
| rex "transactionDate=(?<Date>[^,]+)."
| kv
| table Date PolicyType Account Reason
Host wise ErrorTrends - Area
index=awesome_index ERROR |timechart count by host
Application Database Data & ReconciliationTable
index="awesome_index"
| rex "ClaimNumber="\""(?<ClaimNumber>[^"\"",]+)."
| rex "claimNumber=(?<ClaimNumber>[^,]+)."
| rex "PolicyNumber="\""(?<PolicyNumber>[^"\"",]+)."
| rex "policyNumber=(?<PolicyNumber>[^,]+)."
| rex "LOB="\""(?<PolicyType>[^"\"",]+)."
| rex "policyType=(?<PolicyType>[^,]+)."
| rex "Amount="\""(?<Amount>[^"\"",]+)."
| rex "Status="\""(?<Status>[^"\"",]+)."
| rex "claimStatus=(?<Status>[^,]+)."
| rex "TransactionDate="\""(?<Date>[^"\"",]+)."
| eval Date=strftime(strptime(Date, "--0"),"-0-")
| rex "transactionDate=(?<Date>[^,]+)."
| rex "Reason=(?<Reason>[^,]+)."
| rex "Reason=(?<Reason>[^}]+)."
| rex "Reason="\""(?<Reason>[^"\"",]+)."
| where isnotnull(Reason)
| kv
| table Date PolicyNumber PolicyType ClaimNumber Amount Status Reason source
| sort – Date
Transaction PerformanceTable
index=awesome_index
| rex "in (?<respTime>\d+\.\d+) seconds.*app=(?<Application>[^,}]+)"
| stats count as "Total Transactions" min(respTime) as "Min Resp Time (Sec)" max(respTime) as "Max Resp Time (Sec)" avg(respTime) as "Avg Resp Time (Sec)" by Application
Transaction takings more than 1 SecTable
index=awesome_index "Policy Transaction completed" OR "Claims Transaction completed"
| rex "in (?<ResponseTime>\d+\.\d+) seconds." | where ResponseTime>.01
| rex "app=(?<Application>[^,]+)."
| kv
| table Application ResponseTime
ErrorsEvent - Table
index=awesome_index "java.net.SocketException: Connection reset"
Save as an Event - AI_Java_ConnectionReset
index=awesome_index "ERROR user login failed"
Save as an Event - AI_LoginFailed
index=awesome_index "DB Connection timeout"
Save as an Event - AI_DB_ConnectionTimeout
index=awesome_index "OutOfMemory"
Save as an Event - AI_OutOfMemory
eventtype="AI_Java_ConnectionReset" OR eventtype="AI_LoginFailed" OR eventtype="AI_DB_ConnectionTimeout" OR eventtype="AI_OutOfMemory"
| stats count as Total by eventtype | rename eventtype AS "Error Type" | sort-Total

Create a Splunk Dashboard

Splunk provides a way to present these reports in a dashboard. Presenting reports in the dashboard helps stakeholders to know the state of business or an application in real-time. Business or technical teams can take business decisions or corrective actions based on these real-time operational Splunk reports. Based on our requirements and scripts mentioned above, here is one quick dashboard that we can build.

Log on to Splunk and click on Dashboards. Once on this page, click on the “Create New Dashboard” button:

Provide details for this new Dashboard and click on “Create”:

A black dashboard for “Awesome Insurance Company” has been created. On the top ribbon, there are different options to create and deploy reports:

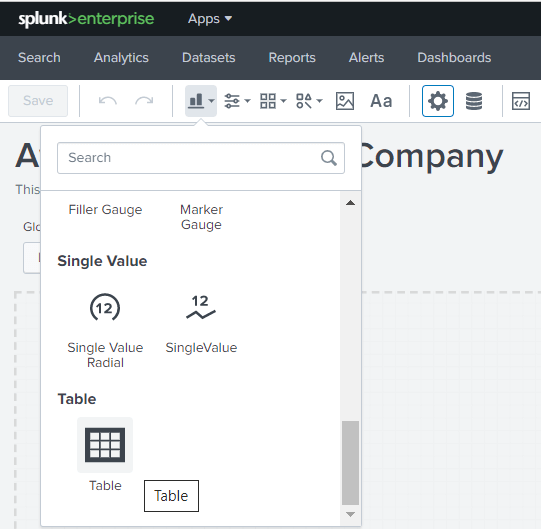

To create a report, click on the “Add Chart” button and select what type of chart you want to build. In our case, I click on “Table”:

A new Table will be created on the dashboard and on the right side, we can add the Splunk report script in there, and as we add script and click on “Run & Save”, data will be populated:

As Below is a dashboard “Awesome Insurance Company” that has these reports aligned with the time picker so that all these reports get the result for the same period.

Connect to a SQL Server Database

If you look at the report above “Application Database Data & Reconciliation”, it is showing data not only from the application logs but from a database, too. Mining data from a database can be very helpful in getting a wholistic idea of the system but mining data from a database needs additional steps. This is achieved by using “Splunk DB Connect” to pull database data and merge it to the main index. This article is not to show how exactly Splunk DB Connect is being configured as it warrants an article in itself but will provide high level steps in creating one.

Consider there is an application, called Awesome Insurance Core System, and it has a database, called Awesome. There are four tables in it, containing Policyholder, Policy, Claim, and Billing information. The idea here is not to show how to set up a SQL Server database or create tables correctly but to give reader an idea on how a table data that is residing in a SQL Server can be extracted.

Create SQL Server tables and insert some records to mimic a policy and claim transactions:

Mine the data using Splunk

Once the data has been populated, now we need to set up Splunk so that it can mine the database.

First, we need to install “Splunk DB Connect”. Splunk DB connect will help in connecting to the database and either fetching or pulling data. Download the latest version or the version that is compatible with your Splunk version. Although installation is quire easy, this article is not going to show how to install this connector.

Once Splunk DB Connect is installed as per the installation instructions, it will be presented in Splunk app:

Click on the “Splunk DB Connect” and “Splunk DB Connect” app will open. Go to “Configurations” and create “Identities”. The Identity is a user who is going to connect to the database.

Next install the appropriate SQL Server driver so that Splunk can communicate to the SQL Server database. I installed the JTDS driver for this test.

Once Identities have been created, then click on “Connections” and provide the connection settings. Select which user will be used for this connection, using which driver, the host where the DB resides, the port used, and the database name. We can also provide specific permission if required. A new connection will be created once you click on “Save”.

With above three steps completed, we are ready to make connection with the database and fetch records from the underlying tables. Click on “Data Lab” and you will see four sub-sections: Inputs, Outputs, Lookups, and SQL Explorer. Since for this test we want to fetch data from a SQL Server database to Splunk, we will create Inputs. Now click on “New Input

One can set up input, use which connection to use, which catalog/ database to connect, use which schema, and can select the tables populated underneath. Once we click on the table, the SQL Editor will generate a select * query. We can change the query as per our requirements. Since we want this table to be updated as we receive data, we must choose a column that our input will track. We can do this by setting values on the right pane. We can choose “Rising” for “Input Type”. The rising column will be “TransactionID” as it is a unique column and always increment by 1. We can set a value that we want Input to track from under “checkpoint value”. We can also set Query Timeout so that system can cancel fetch query if it takes x number of seconds

Click on “Next” and you will be presented with the “Set Properties” section. Some of the information is optional but we need to provide info like “Name”, “Execution Frequency”, “Source Type”, and “Index”. Here we direct Splunk to store all the data mined by that particular Input to this specified Index.

Once a user connects to “Finish”, the user will get an Input completion message.

Like the input creation for the first table, we can set up Inputs for all other 3 tables also and Data will now start flowing into the assigned Index (In our case “awesome_index”).

Since Application log data is already there in the index and now, we also received data from Database, we can now run the Splunk script for “Application Database Data & Reconciliation”. We can see the source type as 5 different source types, Inputs for the database tables as well as the log file.

Set up an Alert

Like a report, we can set up an alert for a critical event if it occurs. We can schedule alerts for the business use case where the business would like to be alerted if there is any Claim approved for more than x amount or for a technical use case where the technical team would like to be alerted in case the system gets an error like Out of Memory, Service Unavailable, Connection Timeout, Failed login (if lots in short span), etc. The following section will show how we can set up an alert in Splunk.

For this example, we are trying to look at any Claim that got approved for more than $50000. Once we get the result set then we can “Save As” Alert.

Once you click on same as alert, we will be presented with the form that we need to fill out so that Alert can be scheduled. We can give a name and then schedule it as per the cron format. We can also set trigger conditions.

Graphical user interface, text, application Description automatically generated

After we put mandatory parameters like above, we can configure “Trigger Actions”. For this test, we will “Add Actions” like “Send email”. We can provide To emailID, message, and can add “inline table” if required. Settings like these will provide an HTML formatted email body along with the inline table having the result set from the above query.

Graphical user interface, application Description automatically generated

Conclusion

Splunk provides a bigdata enabled log analytics solution. Splunk provides operational intelligence and helps enterprises and stakeholders to see the state of their systems in real-time. Although this article has presented some basic reporting, Splunk reports can also be more complex and derive more business value. Splunk can also connect to a database to create a report based on a structured database. Splunk can push log data to outside databases or copy data from outside databases to the Splunk Index. Once the data is in one place, creating reports is very easy and provides a holistic view of the application transactions. Splunk is also a great tool to alert business or IT teams so that an issue can be resolved before an issue becomes a problem. Apart from the Log Analytics solution that Splunk provides to IT, there are many other use cases like Security and DevOps where Splunk can shine. Splunk also provides a lot of connectors to other applications for ease of use. Gathering business and technology analytics from application logs and application databases using Splunk can be of great help to companies.
