Monitor Any Linked Server From SQL 2000

, 2008-07-11 (first published: )

Hi,

DBA's often monitor Backups, Replication e.t.c manually or through some automation but there is one thing which needs to be monitored is linked server. Often there may be some issue in linked server and DBA's will not know till Application user raises issue. Also there is a straight method (sp_TestLinkedServer) to test linked servers in SQL 2005 will say pass even the Access is deleted from the path. So this script will help you to monitor Linked servers from SQL 2000 and i have posted another SQL 2005 version of this script.

Also fine below the test i have done on this script and options available to test linked servers.

Below are the tests done and their status.

The RED issues cannot be captured in SQL 2000 (No option to TRY/CATCH ???) and thus why it is good to monitor linked servers from SQL 2005.

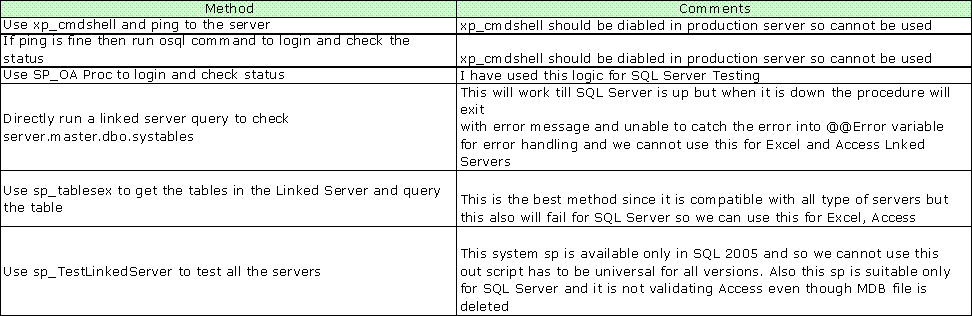

Below are the options available to test linked server

In the above we cannot use sp_tableex since incase SQL server is not running or access denied etc then runtime error will come so only we are using sp_OA.

Any enhancements/suggestions are always welcome!

SET QUOTED_IDENTIFIER ON
GO
SET ANSI_NULLS ON
GO

------------------------------------------------------------------------------------------------------------------
---	Name		: uspMonitor_LinkedServer
---	Author		: Sakthivel C
---	Release Date	: 05/03/2008
---	Revision	: O
---	Revision History:
------------------------------------------------------------------------------------------------------------------
ALTER PROCEDURE dbo.[uspMonitor_LinkedServer]
AS
BEGIN


DECLARE @ServerName VARCHAR(255)
DECLARE @ServerType VARCHAR(50)
DECLARE @Dummy VARCHAR(100)
DECLARE @msg VARCHAR(500)
DECLARE @hr INT
DECLARE @sql INT
DECLARE @Error bigint
DECLARE @status INT ;SET @status = 0

-- Get the list of Excel and Access Linked Servers Since the Testing Method is different here
DECLARE Lnkd_srvr_Crsr CURSOR FAST_FORWARD FOR
SELECT srvname FROM master..sysservers WHERE isremote=1 AND srvproduct NOT LIKE 'SQL Server%' AND srvname NOT IN ('')

OPEN Lnkd_srvr_Crsr
FETCH NEXT FROM Lnkd_srvr_Crsr INTO @ServerName
WHILE @@FETCH_STATUS = 0
BEGIN
 -- Reading a sample Table Name to Dummy Variable from Excel sheet to ensure Connectivity
 SELECT TOP 1 @Dummy = TABLE_NAME from master.dbo.SYSREMOTE_TABLES (@ServerName)

-- Checking Status and Sending Alert Mail to Team
 IF @@ROWCOUNT = 0 BEGIN
	SET @msg= 'Error in Getting Data from linked server ' + @ServerName + ' Configured at ' + @@SERVERNAME

	Exec [MONITOR].master.dbo.xp_smtp_sendmail @from= 'Linked_Server_Alert@Company.com' ,@from_name= @@SERVERNAME ,
	@to='Team@Company.com',
	@priority = 'HIGH', @subject=@msg,
	@type= 'text/plain', @server = 'mailserver.company.com'
	Print 'Mail Sent' + @ServerName
 END
 SET @status = 0	-- Setting the Status Variable back to 0 for Resetting Error Trapped

FETCH NEXT FROM Lnkd_srvr_Crsr INTO @ServerName
END
CLOSE Lnkd_srvr_Crsr
DEALLOCATE Lnkd_srvr_Crsr

-- Get the list of SQL Linked Servers Since the Testing Method is different here
DECLARE Lnkd_srvr_Crsr CURSOR FAST_FORWARD FOR
SELECT srvname FROM master..sysservers WHERE isremote=1 AND srvproduct LIKE 'SQL Server%' AND srvname NOT IN ('')
OPEN Lnkd_srvr_Crsr

FETCH NEXT FROM Lnkd_srvr_Crsr INTO @ServerName
WHILE @@FETCH_STATUS = 0
BEGIN

 -- Performing a login and check the status of Server(SQL) to ensure Connectivity

 EXEC @hr = sp_OACreate 'SQLDMO.SQLServer', @sql OUTPUT
 ---IF @hr<>0 EXEC sp_OAGetErrorInfo @sql -- Used while testing procedure to check error msg
 EXEC @hr = sp_OASetProperty @sql ,'LoginSecure','True'
 EXEC @hr = sp_OASetProperty @sql ,'LoginTimeout',10
 EXEC @hr = sp_OAMethod @sql,'Connect',null,@ServerName
 EXEC @hr = sp_OAGetProperty @sql ,'Status',@status OUTPUT
 EXEC @hr = sp_OAMethod @sql,'DisConnect',null
 EXEC @hr = sp_OADestroy @sql

 -- Checking Status and Sending Alert Mail to Team
IF @status <> 1 BEGIN
	SET @msg= 'Timeout in Getting Data from linked server ' + @ServerName + ' Configured at ' + @@SERVERNAME
	Exec [MONITOR].master.dbo.xp_smtp_sendmail @from= 'Linked_Server_Alert@Company.com' ,@from_name= @@SERVERNAME ,
	@to='Team@Company.com',
	@priority = 'HIGH', @subject=@msg,
	@type= 'text/plain', @server = 'mailserver.company.com'
	Print 'Mail Sent' + @ServerName
END
print @status
SET @status = 0		-- Setting the Status Variable back to 0 for Resetting Error Trapped

 FETCH NEXT FROM Lnkd_srvr_Crsr INTO @ServerName
END
CLOSE Lnkd_srvr_Crsr
DEALLOCATE Lnkd_srvr_Crsr


END

GO
SET QUOTED_IDENTIFIER OFF
GO
SET ANSI_NULLS ON
GO
