SQL 2000 Replication Architecture

,

Replication: SQL Server 2000– Table of Contents

Database management systems are among the most important software systems

driving the information age. In many Internet applications, a large number of

users who are geographically dispersed may routinely query and update the same

database. In this environment, the location of the data can have a significant

impact on application response time and availability. A centralized approach

manages only one copy of the database. The centralized approach suffers from

two major drawbacks:

  • Performance problems due to high server load or high communication latency for

    remote clients.

  • Availability problems caused by server downtime or lack of connectivity.

    Clients in portions of the network that are temporarily disconnected from the

    server cannot be serviced.

These issues would be effectively answered by Replication
Replication is the process of sharing data between databases in different

locations. Using replication you create copies of the Database and share the

copy with different users so that they can make changes to their local copy of

database and later synchronize the changes to the source database.


  • Users working in different geographic locations can work with their local copy

    of data thus allowing greater autonomy.

  • Database replication can also supplement your disaster-recovery plans by

    duplicating the data from a local database server to a remote database server.

    If the primary server fails, your applications can switch to the replicated

    copy of the data and continue operations.

  • You can automatically back up a database by keeping a replica on a different

    computer. Unlike traditional backup methods that prevent users from getting

    access to a database during backup, replication allows you to continue making

    changes online.

  • You can replicate a database on additional network servers and reassign users

    to balance the loads across those servers. You can also give users who need

    constant access to a database their own replica, thereby reducing the total

    network traffic.

  • Database-replication logs the selected database transactions to a set of

    internal replication-management tables, which can then be synchronized to the

    source database. Database replication is different from file replication, which

    essentially copies files.


Microsoft SQL server uses publishing industry model to represent the components

and processes in replication architecture. Publishing industry publishes

Magazines/Books; there are Distributors and Agents who carry these publications

to the Subscribers. Subscriber of the magazine obtains copies of the

publication and read the articles of interest to him; this is how SQL Server

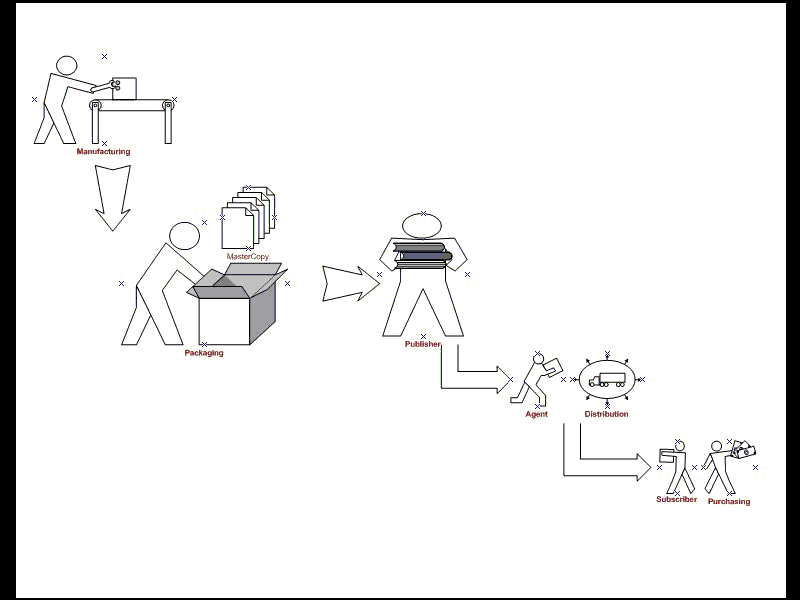

Replication model works. Figure 1 depicts the typical Publishing industry flow.


Based on the above model we can identify following Entities for the SQL Server

replication model.

  • Publisher
  • Distributor
  • Agent
  • Subscriber
  • Articles
  • Publications
  • Subscriptions
Let us know more about each of these Entities:


Publisher

Publisher is a server that makes the data available for subscription to other

servers. In addition to making data available for replication, publisher also

identifies what data has changed at the subscriber during the synchronizing

process. Depending on the type of the replication, changed data is identified

at different instances. We will learn more about Replication types in the

Replication.


Distributor maintains the Distribution Database. The role of the distributor

varies depending on the type of replication. Two types of Distributors are

identified, remote distributor and Local distributor. Remote distributor is

separate from publisher and is configured as distributor for replication. Local

distributor is a server that is configured as publisher and distributor.


Agents are the processes that are responsible for copying and distributing data

between Publisher and subscriber. There are different types of Agents

supporting different replication types.


Subscriber is a server that receives and maintains the published data.

Modifications to the data at subscriber can be propagated back to the

publisher; in some cases Subscriber may re-publish the data to the other

subscribers.


An article can be any database object, viz. Tables (Column filtered or Row

filtered), Views, Indexed views, Stored Procedures, User defined functions.


Publication is collection of articles.

Subscription is a request for copy of data or database objects to be

replicated.



Subscription Types:

Changes to the subscriptions at the publisher can be replicated to subscribers

via PUSH subscription or PULL subscription.

With Push subscription the publisher is responsible for synchronizing

all the changes to the subscriber without subscriber asking for those changes.

With Pull subscription the subscriber initiates the replication instead

of the publisher.


Microsoft SQL Server supports, following types of replication.
  • Snapshot Replication
  • Transactional Replication
  • Merge Replication
Snapshot replication is also known as static replication. Snapshot replications

copies and distributes data and database objects exactly as they appear at

current moment in time.


  1. The changes to data at subscriber are not updated to the subscriber

    continuously

  2. Subscribers are updated with complete modified data and not by individual

    transactions

  3. Propagating the changes to the subscribers takes more time as it is one time

    process or scheduled process.

Following are some of the scenarios where snapshot replication fits in ideally
  • Data/Db objects are static or does not change frequently
  • Replicate Look Up tables that do not change frequently
  • Amount data to be replicated is small
  • Users often work in disconnected mode, and are not always interested with

    latest data.

Transactional replication is also known as dynamic replication. In

transactional replication, modifications to the publication at the publisher

are propagated to the subscriber incrementally.


  • Publisher and the subscriber are always in synchronization
  • Transaction boundaries are preserved, i.e. if there modification to 5 rows of

    data, either all the 5 modified rows are propagated to the subscriber or none

  • The publisher and the subscriber should be connected always.
  • Replicating Database with rollup information, Database with regional, central

    sales or inventory database that is updated and replicated to different sites.

  • Subscribers always need the latest data for processing
Merge replication provides advantageous of both Snapshot replication and

Transactional replication. The initial snapshot applied to the subscribers and

then SQL server tracks changes to the data at publisher and subscriber. The

data is synchronized on scheduled basis or on demand. Since data modifications

are made independently at publisher and subscriber, conflicts are likely to

occur during synchronizing.


  • Updates to the data are made independently at more than one server
  • Data is merged on scheduled basis or on demand
  • Allows users to work online/offline and synchronize the publisher and

    subscriber on scheduled basis or on demand.

  • Site autonomy is very critical
  • Multiple subscribers need to update the data at same time or different time and

    propagate the changes to the publisher

With the above basic knowledge we can now proceed to understand the

implementation of replication. There are different ways by which you can

implement and monitor replication based on different replication types. But in

general replication has following general steps:

  • Configuring replication
  • Generating and applying initial snapshot
  • Modifying replicated data
  • Synchronizing and propagating data
  • Configure the publisher and distributor. Distributor can be same server or

    different server

  • Create publications based on data, sub sets of data and database objects
  • Determine the type of replication to use, the subscriber database and location

    of the snapshot file

  • Configure when the synchronization will occur and options that will be used

    with publications

  • Create push and/or pull subscriptions at either the publisher or the subscriber

    and configure your replication schedule and options

SQL server 2000 creates a snapshot of data and schema and saves it in the

snapshot file location. After subscription is created when the snapshot is

applies is based on configured schedule when creating publication or snapshot

can be applied manually

The snapshot agent is responsible for creating the snapshot file and stores it

in the snapshot file location


Depending on the type of replication and replication options, the subscriber

will be able to modify the data after the snapshot has been applied and

propagate the changes back to the publisher or other subscribers.


Synchronization refers to the propagation of data changes between subscriber

and publisher. How the data is synchronized is dependent on the type of

replication used.

  • Incase of snapshot replication, snapshot file is reapplied at the subscriber
  • Incase of transactional replication all data modification through Insert/Update

    and Delete and distributed between publisher and subscriber

  • Incase of merge replication data modification at various servers are merged,

    conflicts if any are detected and resolved.

Special consideration should be taken for some of the data types and properties

during replication. These Data types and properties are:

  • Identity range management
  • Unique identifier and Timestamp data types
  • NOT FOR REPLICATION option

Identity range management:

Value of a column marked as Identity is incremented automatically, when new

rows are added to the column table. In replication where publication contains

identity columns following configurations can be used to manage Identity

columns


Use Auto Identity range management of SQL Server 2000
For example, you can set the Identity range of 1 to 500 for Publication ‘A’ at

Publisher and 501 to 1000 for the same publication at Subscriber, with

threshold of 80%

In this case newly inserted row at publisher will have Identity from 1 to 500

and a newly inserted row at subscriber will have identity from 501 to 1000

When threshold is reached 80% new identity range is used for the next inserts.

In this case if the identity value reaches 400 at the Publisher and new inserts

after that will use the new identity range from 1001 to 1500.

Similarly if the Subscriber threshold reaches 800, any new inserts after that

will have Identity range from 1501 to 2000

The threshold value should be set carefully by evaluating the frequency of

updates at the subscriber and synchronization schedule. Setting threshold to a

lower value will result in many unused Identity values.

Following system-stored procedures can also be used to set Identity range

explicitly.

  • Sp_adjustpublisheridentityrange
  • Sp_addmergearticle

Use NOT FOR REPLICATION option when defining Identity columns
Identity ranges can also be managed by defining check constraint and the NOT

FOR REPLCIATION option on Identity column. When an identity column is specified

as NOT FOR REPLCATION, then its range should be provided programmatically. When

this option is set, SQL server retains the original values set by the

replication agent but continues to increment the value of the Identity column

in a normal value, i.e. without resetting the Identity value.


The following steps help to setup the Replication using the SQL Server

Enterprise Manager. For this example I would consider the standard PUBS

database.

1. Set Up right login for Replication

  • To set up replication, you must use a login account that is a member of SQL

    Server's Process Administrators (or higher authority) server role. I used “sa”

    and it worked.

2. Configuring Server for Publishing, Subscribers and Distributor.

  • Under SQL Server enterprise manager navigate to Tools/Replication menu, run

    Configure Publishing and Distribution Wizard.

      • Select your server as Publisher, Distributor and Subscriber server
          • Specify the location where snapshots from publishers that use this distributor

            will be stored.

              • Configure your server with default settings or apply custom settings, in this

                example I would use the default settings.

              With the above settings you have enabled your server as distributor server, and

              to create Publishers and Subscribers. This process will also create a New

              Distribution Database under the selected server.



              3. Creating Publication

              • Right click on PUBS database click on New/Publication…which will run the

                Publication wizard.

              • Select the PUBS database as Publication Database
                  • Chose replication type as Merge replication.
                      • Specify what types of Subscribers will subscribe to this Publication, In this

                        example I chose, SQL Server 2000 as Subscriber types

                      • Chose the ‘Object type’ you want to Publish, I in this example I will chose to

                        publish all type of objects.

                          • Go to all the table article properties (Click on the ellipses) and select the

                            Identity Range tab and Check Automatic identity range manipulation check box

                            and set Publisher and Subscriber range to desired value, in this example I will

                            set the Identity range value as 1500. This is tedious process, hence it is

                            necessary to automate this process, I will use the following system stored

                            procedures to set the Identity range explicitly.

                            • Sp_adjustpublisheridentityrange
                            • Sp_addmergearticle
                          Following is the source code of the stored procedure, which automates the

                          Identity range setting process.

                          The Stored procedure takes ‘PublisherName’ and ‘IdentityRange’ as the parameter

                          and internally uses ‘SP_addmergearticle’ system stored procedures to set the

                          Identity range of all the Published Table articles.

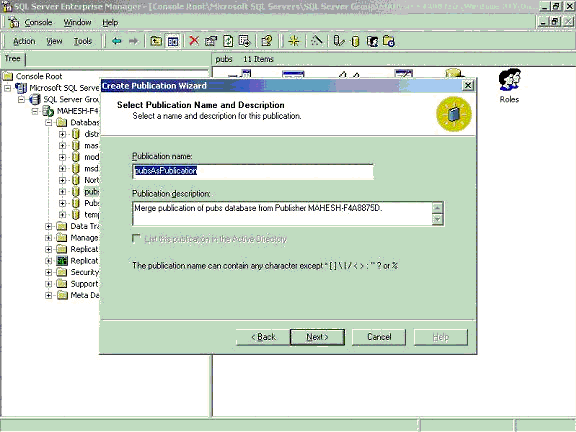

                          • Specify the Publication name.

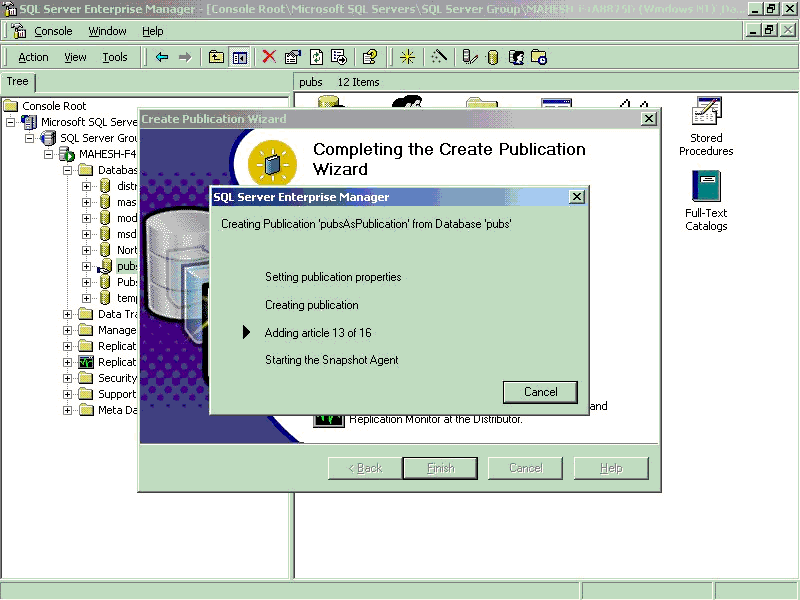

                          • Accept other settings and create publication.
                          With the above steps we have Published the data in Database ‘Pubs’ and also set

                          publication properties.



                          4. Create Snap Shot

                          • Navigate to /Replication/Publications/properties…
                              • Select the status Tab
                                  • Click on “Run Agent Now” button this will create the snap shot files

                                  5. Adding Subscribers

                                  • Create a new Database, Just a new SQL Server Database. In this example I have

                                    created a New Database by name PubsSubscriber

                                  • Right click on /Replication/Publications/Pubs:
                                  • Click “Push New Subscription” to run the New Subscription wizard
                                      • Choose the newly created database as Subscriber Database
                                          • Set Merge Agent schedule
                                              • Choose Initialize both schema and data option and check Start the Merge agent

                                                to initialize the subscription immediately.

                                                Note: Since my Subscriber Database was new database I have chosen to

                                                initialize both schema and Data.

                                                Navigate through the wizard, accepting further options and click on finish to

                                                complete the wizard steps.

                                                With the above steps we created a new subscriber database and setup the

                                                handshake between publisher and Subscriber.

                                                Now you can distribute the subscriber Database to its users who can ‘play’ with

                                                their own copy of data, and synchronize the data as per the rules of business.



                                                6. Synchronize

                                                • To synchronize, Right click on the /Replication/Publications/Pubs: And click “Start Synchronization”

                                                Filtering Published Data
                                                Replication can be tuned to yield better performance, and one of the ways to

                                                achieve this is filtering the data before publishing, in other words, “Give

                                                subscribers what they want to see and play with”.

                                                Replication facilitates this by splitting the vertical/Horizontal. By

                                                distributing partitions of data to different Subscribers, you can:

                                                • Minimize the amount of data sent over the network.
                                                • Reduce the amount of storage space required at the Subscriber.
                                                • Customize publications and applications based on individual Subscriber

                                                  requirements.

                                                • Reduce conflicts because the different data partitions can be sent to different

                                                  Subscribers.

                                                In addition following are some of the tips, which will help to yield better

                                                performance

                                                • When running SQL Server replication on a dedicated server, consider setting the

                                                  minimum memory amount for SQL Server to use from the default value of 0 to a

                                                  value closer to what SQL Server normally uses.

                                                • Don’t publish more data than you need. Try to use Row filter and Column filter

                                                  options wherever possible as explained above.

                                                • For best performance, avoid replicating columns in your publications that

                                                  include TEXT, NTEXT or IMAGE data types.

                                                • Avoid creating triggers on tables that contain subscribed data
                                                • Applications that are updated frequently are not good candidates for database

                                                  replication.

                                                • Distribute the workload into more than one SQL server using replication.
                                                • Plan for the type of replication to be used before the database design, because

                                                  the type of replication used will to certain extent guide your database design


                                                In a nutshell, replication is the capability to reliably duplicate data from a

                                                source database to one or more destination databases. SQL Server 2000 gives you

                                                the power for replication design, implementation, monitoring, and

                                                administration. This gives you the functionality and flexibility needed for

                                                distributing copy of data and maintaining data consistency among the

                                                distributed. You can automatically distribute data from one SQL Server to many

                                                different SQL Servers through ODBC (Open Database Connectivity) or OLE DB. SQL

                                                Server replication provides update replication capabilities such as Immediate

                                                Updating Subscribers and merges replication. With all the new enhancements to

                                                SQL Server replication, the number of possible applications and business

                                                scenarios is mind-boggling.



                                                Author:

                                                Mahesh M Kodli
                                                Senior Systems Engineer,MCAD Professional
                                                Global Microsoft Unit, Wipro Technologies
                                                Bangalore

                                                Rate

                                                4.6 (5)

                                                Share

                                                Share

                                                Rate

                                                4.6 (5)
