Error while loading Excel data into database

,

Issue: I am trying to load data from Excel 97 – 2003 sheet into a database table. I have written a simple SSIS package to do that, but unfortunately, it fails with error: –



Microsoft (R) SQL Server Execute Package Utility  Version 11.0.6020.0 for 64-bit  Copyright (C) Microsoft Corporation. All rights reserved.    Started:  2:02:37 AM  Error: 2016-12-19 02:02:37.91     Code: 0xC0209303     Source: ExcelImpot Connection manager “SourceConnectionExcel”     Description: The requested OLE DB provider Microsoft.ACE.OLEDB.12.0 is not registered. If the 64-bit driver is not installed, run the package in 32-bit mode. Error code: 0x00000000.  An OLE DB record is available.  Source: “Microsoft OLE DB Service Components”  Hresult: 0x80040154  Description: “Class not registered”.  End Error  Error: 2016-12-19 02:02:37.91     Code: 0xC001002B     Source: MAPTImpot Connection manager “SourceConnectionExcel”     Description: The ‘Microsoft.ACE.OLEDB.12.0’ provider is not registered on the local machine. For more information, see http://go.microsoft.com/fwlink/?LinkId=219816  End Error  Error: 2016-12-19 02:02:37.91     Code: 0xC020801C     Source: Data Flow Task 1 Source – Sheet1$ [38]     Description: SSIS Error Code DTS_E_CANNOTACQUIRECONNECTIONFROMCONNECTIONMANAGER.  The AcquireConnection method call to the connection manager “SourceConnectionExcel” failed with error code 0xC0209303.  There may be error messages posted before this with more information on why the AcquireConnection method call failed.  End Error  Error: 2016-12-19 02:02:37.91     Code: 0xC0047017     Source: Data Flow Task 1 SSIS.Pipeline     Description: Source – Sheet1$ failed validation and returned error code 0xC020801C.  End Error  Error: 2016-12-19 02:02:37.91     Code: 0xC004700C     Source: Data Flow Task 1 SSIS.Pipeline     Description: One or more component failed validation.  End Error  Error: 2016-12-19 02:02:37.91     Code: 0xC0024107     Source: Data Flow Task 1      Description: There were errors during task validation.  End Error  DTExec: The package execution returned DTSER_FAILURE (1).  Started:  2:02:37 AM  Finished: 2:02:37 AM  Elapsed:  0.733 seconds.  The package execution failed.  The step failed.

Cause: This error occurs when you try to execute 32-bit environment package in 64-bit system.

Solution 1: If you have project file of SSIS package or If you are running package other than SQL Agent jobs like calling from CMD.

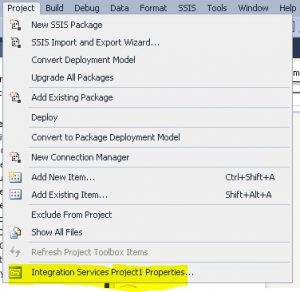

Step 1: Navigate to Project-> [PROJECT_NAME] Properties.

Step 2: Navigate to “Debugging” option from left panel and from Right panel change Run64BitRuntime value to false.

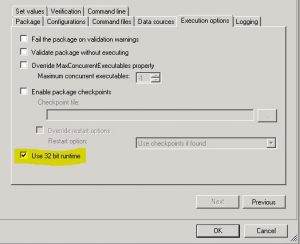

Solution 2: If you need to execute package from SQL agent job only then you have readymade option available. Go to Job step and check below option.
