Deploying To a Power Bi Report Server with PowerShell

,

Just a quick post to share some code that I used to solve a problem I had recently.

I needed to automate the deployment of some Power Bi reports to a Power Bi Report Server PBRS using TFS. I had some modified historical validation dbachecks pbix files that I wanted to automate the deployment of and enable the client to be able to quickly and simply deploy the reports as needed.

The manual way

It is always a good idea to understand how to do a task manually before automating it. To deploy to PBRS you need to use the Power Bi Desktop optimised for Power Bi Report Server. There are instructions here. Then it is easy to deploy to the PBRS by clicking file and save as and choosing Power Bi Report Server

manual deploy

If I then want to set the datasource to use a different set of credentials I navigate to the folder that holds the report in PBRS and click the hamburger menu and Manage

manage

and I can alter the User Name and Password or the type of connection by clicking on DataSources


and change it to use the reporting user for example.

Automation

But I dont want to have to do this each time and there will be multiple pbix files, so I wanted to automate the solution. The end result was a VSTS or TFS release process so that I could simply drop the pbix into a git repository, commit my changes, sync them and have the system deploy them automatically.

As with all good ideas, I started with a google and found this post by Bill Anton which gave me a good start ( I could not get the connection string change to work in my test environment but this was not required so I didnt really examine why)

I wrote a function that I can use via TFS or VSTS by embedding it in a PowerShell script. The function requires the ReportingServicesTools module which you can get by

Install-Module -Name ReportingServicesTools

The function below is available via the PowerShell Gallery also and you can get it with

Install-Script -Name PublishPBIXFile

The source code is on Github

and the code to call it looks like this

$folderName = 'TestFolder'
$ReportServerURI = 'http://localhost/Reports'
$folderLocation = '/'
$pbixfile = 'C:\Temp\test.pbix'
$description = "Descriptions"
$publishPBIXFileSplat = @{
    ReportServerURI    = $ReportServerURI
    folderLocation     = $folderLocation
    description        = $description
    pbixfile           = $pbixfile
    folderName         = $folderName
    AuthenticationType = 'Windows'
    ConnectionUserName = $UserName1
    Secret             = $Password1
    Verbose            = $true
}
Publish-PBIXFile @publishPBIXFileSplat

which uploads the report to a folder which it will create if it does not exist. It will then upload pbix file, overwriting the existing one if it already exists


and uses the username and password specified


If I wanted to use a Domain reporting user instead I can do

$UserName1 = 'TheBeard\ReportingUser'
$publishPBIXFileSplat = @{
    ReportServerURI    = $ReportServerURI
    folderLocation     = $folderLocation
    description        = $description
    pbixfile           = $pbixfile
    folderName         = $folderName
    AuthenticationType = 'Windows'
    ConnectionUserName = $UserName1
    Secret             = $Password1
    Verbose            = $true
}
Publish-PBIXFile @publishPBIXFileSplat
and it changes
code4 reporting
If we want to use a SQL Authenticated user then
$UserName1 = 'TheReportingUserOfBeard'
$publishPBIXFileSplat = @{
    ReportServerURI    = $ReportServerURI
    folderLocation     = $folderLocation
    description        = $description
    pbixfile           = $pbixfile
    folderName         = $folderName
    AuthenticationType = 'SQL'
    # credential = $cred
    ConnectionUserName = $UserName1
    Secret             = $Password1
}
Publish-PBIXFile @publishPBIXFileSplat

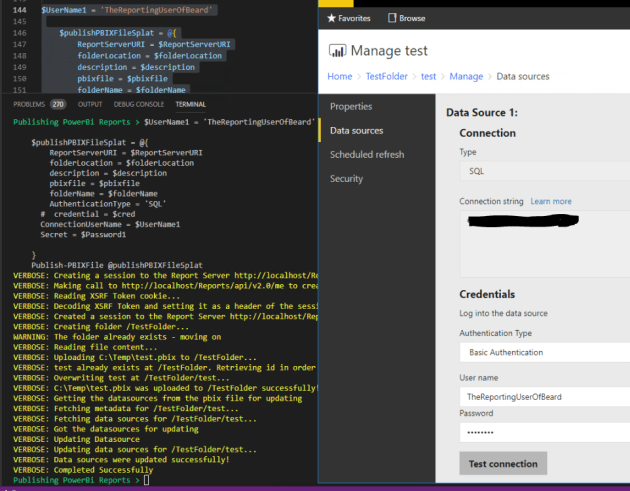

sql auth.PNG
Excellent, it all works form the command line. You can pass in a credential object as well as username and password. The reason I enabled username and password? So that I can use TFS or VSTS and store my password as a secret variable.
Now I simply create a repository which has my pbix files and a PowerShell script and build a quick release process to deploy them whenever there is a change ??
The deploy script looks like
[CmdletBinding()]
Param (
    $PBIXFolder,
    $ConnectionStringPassword
)
$VerbosePreference = 'continue'
$ReportServerURI = 'http://TheBeardsAmazingReports/Reports'
Write-Output "Starting Deployment"
function Publish-PBIXFile {
    [CmdletBinding(DefaultParameterSetName = 'ByUserName', SupportsShouldProcess)]
    Param(
        [Parameter(Mandatory = $true)]
        [string]$FolderName,
        [Parameter(Mandatory = $true)]
        [string]$ReportServerURI,
        [Parameter(Mandatory = $true)]
        [string]$FolderLocation,
        [Parameter(Mandatory = $true)]
        [string]$PBIXFile,
        [Parameter()]
        [string]$Description = "Description of Your report Should go here",
        [Parameter()]
        [ValidateSet('Windows', 'SQL')]
        [string]$AuthenticationType,
        [Parameter(ParameterSetName = 'ByUserName')]
        [string]$ConnectionUserName,
        [Parameter(ParameterSetName = 'ByUserName')]
        [string]$Secret,
        [Parameter(Mandatory = $true, ParameterSetName = 'ByCred')]
        [pscredential]$Credential
    )
    $FolderPath = $FolderLocation + $FolderName
    $PBIXName = $PBIXFile.Split('\')[-1].Replace('.pbix', '')
    try {
        Write-Verbose"Creating a session to the Report Server $ReportServerURI"
        # establish session w/ Report Server
        $session = New-RsRestSession-ReportPortalUri $ReportServerURI
        Write-Verbose"Created a session to the Report Server $ReportServerURI"
    }
    catch {
        Write-Warning"Failed to create a session to the report server $reportserveruri"
        Return
    }
    # create folder (optional)
    try {
        if ($PSCmdlet.ShouldProcess("$ReportServerURI", "Creating a folder called $FolderName at $FolderLocation")) {
            $Null = New-RsRestFolder-WebSession $session-RsFolder $FolderLocation-FolderName $FolderName-ErrorAction Stop
        }
    }
    catch [System.Exception] {
        If ($_.Exception.InnerException.Message -eq 'The remote server returned an error: (409) Conflict.') {
            Write-Warning"The folder already exists - moving on"
        }
    }
    catch {
        Write-Warning"Failed to create a folder called $FolderName at $FolderLocation report server $ReportServerURI but not because it already exists"
        Return
    }
    try {
        if ($PSCmdlet.ShouldProcess("$ReportServerURI", "Uploading the pbix from $PBIXFile to the report server ")) {
            # upload copy of PBIX to new folder
            Write-RsRestCatalogItem-WebSession $session-Path $PBIXFile-RsFolder $folderPath-Description $Description-Overwrite
        }
    }
    catch {
        Write-Warning"Failed to upload the file $PBIXFile to report server $ReportServerURI"
        Return
    }
    try {
        Write-Verbose"Getting the datasources from the pbix file for updating"
        # get data source object
        $datasources = Get-RsRestItemDataSource-WebSession $session-RsItem "$FolderPath/$PBIXName"
        Write-Verbose"Got the datasources for updating"
    }
    catch {
        Write-Warning"Failed to get the datasources"
        Return
    }
    try {
        Write-Verbose"Updating Datasource"
        foreach ($dataSourcein$datasources) {
            if ($AuthenticationType -eq 'SQL') {
                $dataSource.DataModelDataSource.AuthType = 'UsernamePassword'
            }
            else {
                $dataSource.DataModelDataSource.AuthType = 'Windows'
            }
            if ($Credential -or $UserName) {
                if ($Credential) {
                    $UserName = $Credential.UserName
                    $Password = $Credential.GetNetworkCredential().Password
                }
                else {
                    $UserName = $ConnectionUserName
                    $Password = $Secret
                }
                $dataSource.CredentialRetrieval = 'Store'
                $dataSource.DataModelDataSource.Username = $UserName
                $dataSource.DataModelDataSource.Secret = $Password
            }
            if ($PSCmdlet.ShouldProcess("$ReportServerURI", "Updating the data source for the report $PBIXName")) {
                # update data source object on server
                Set-RsRestItemDataSource-WebSession $session-RsItem "$folderPath/$PBIXName"-RsItemType PowerBIReport -DataSources $datasource
            }
        }
    }
    catch {
        Write-Warning"Failed to set the datasource"
        Return
    }
    Write-Verbose"Completed Successfully"
}
foreach ($File in (Get-ChildItem $PBIXFolder\*.pbix)) {
    Write-Output"Processing $($File.FullName)"
    ## to enable further filtering later
    if ($File.FullName -like '*') {
        $folderName = 'ThePlaceForReports'
        $folderLocation = '/'
        $UserName = 'TheBeard\ReportingUser'
        $Password = $ConnectionStringPassword
        $pbixfile = $File.FullName
    }
    if ($File.FullName -like '*dbachecks*') {
        $description = "This is the morning daily checks file that....... more info"
    }
    if ($File.FullName -like '*TheOtherReport*') {
        $description = "This is hte other report, it reports others"
    }
    $publishPBIXFileSplat = @{
        ReportServerURI    = $ReportServerURI
        folderLocation     = $folderLocation
        description        = $description
        AuthenticationType = 'Windows'
        pbixfile           = $pbixfile
        folderName         = $folderName
        ConnectionUserName = $UserName
        Secret             = $Password
        Verbose            = $true
    }
    $Results = Publish-PBIXFile@publishPBIXFileSplat
    Write-Output$Results
}
Although the function does not need to be embedded in the script and can be deployed in a module, I have included it in here to make it easier for people to use quickly. I
Then create a PowerShell step in VSTS or TFS and call the script with the parameters as shown below and PowerBi files auto deploy to Power Bi Report Server
and I have my process complete ??
Happy Automating ??
