How to find islands and get max and min range values

Question

Post reply

How to find islands and get max and min range values

itlk

Mr or Mrs. 500

Points: 578
More actions
July 27, 2021 at 2:53 pm

#3914334
I am trying to create groups for each Name and save the max and min ID for each group. The new group starts if the Length is higher then the previous Length for a particular Name, ordered by ID.
The source data table is as follow:
```
CREATE TABLE [dbo].[TEST](
[Name] [nvarchar](50) NOT NULL,
[Length] [int] NOT NULL,
[ID] [int] NOT NULL
) ON [PRIMARY]
GO
```
```
INSERT INTO [dbo].[TEST]
           ([Name]
           ,[Length]
           ,[ID])
     VALUES
 ('A',30,1),
 ('B',30,2),
 ('C',40,3),
     ('A',25,4),
     ('A',20,5),
     ('B',35,6),
     ('A',20,7),
     ('B',30,8),
     ('A',25,9),
     ('A',20,10)
GO
```

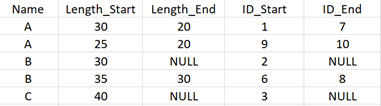

The result table should look like this:
I approached this like a problem of finding the islands. The first island for Name = A is defined by Length 30 to 20. The second island is again for Name = A but Length 25 to 20.
I used Row_number() function but I don’t know how to create the proper partitions: in the example above, we have two partitions for the Name = A, for example.
Thanks for help.
- This topic was modified 2 years, 9 months ago by itlk. Reason: Missing script to create a sample table
- This topic was modified 2 years, 9 months ago by itlk.

Viewing 8 posts - 1 through 7 (of 7 total)

You must be logged in to reply to this topic. Login to reply

pietlinden SSC Guru Points: 63428 More actions · Answer 1

The source data table is as follow...

Okay, how about a create table script?

itlk Mr or Mrs. 500 Points: 578 More actions · Answer 2

itlk

Mr or Mrs. 500

Points: 578

July 27, 2021 at 5:12 pm

#3914380

Added a script

Mr. Brian Gale SSC-Insane Points: 24689 More actions · Answer 3

Looking at the code and just spitballing an idea, if you order the data by Name first and by ID second, you can use lead to see if the length is greater than or equal to the current value and that the Name is the same. If that is true, it is part of a group. If it is false, it is the end of a group. So you can easily mark the end of a group. Using LAG and similar logic you can find the start of a group.

Using the above values, you should be able to use the start of the group to get the Length Start and Start ID values and using the end of the group to get the Length End and End ID values.

May need to also do a check to make sure that the start ID and end ID aren't the same and if they are, then you mark the Length End and End ID as NULL.

Might not be the most efficient approach, but should get the desired results.

EDIT - Potential solution (VERY likely not the most efficient approach) is:

WITH [cte]
AS
(
SELECT
[Name]
, [Length]
, [ID]
, CASE
  WHEN [length] >= LEAD(   [Length]
   , 1
   ) OVER (ORDER BY [Name]
, [ID]
  )
   THEN 1
  ELSE 0
  END AS [leading]
, CASE
  WHEN [length] <= LAG(  [length]
  , 1
  ) OVER (ORDER BY [name]
   , [id]
 )
   THEN 1
  ELSE 0
  END AS [lagging]
 FROM[dbo].[temp]
)
 , [rawData]
AS
(
SELECT
[cte].[Name]
, [cte].[Length]
, [cte].[ID]
, [cte].[leading]
, [cte].[lagging]
, LEAD(  [length]
  , 1
  ) OVER (PARTITION BY
  [name]
  ORDER BY [name]
 ) AS [End_Length]
, LEAD(  [id]
  , 1
  ) OVER (PARTITION BY
  [name]
  ORDER BY [name]
 ) AS [end_ID]
 FROM[cte]
 WHERE[cte].[leading]= 0
OR[cte].[lagging] = 0
)
 SELECT
[rawData].[Name]
, [rawData].[Length] AS [Start_length]
, CASE
  WHEN [rawData].[leading] = 0
   AND [rawData].[lagging] = 0
   THEN NULL
  ELSE NULLIF([rawData].[End_Length], [rawData].[length])
  END AS [End_Length]
, [rawData].[ID] AS [Start_ID]
, CASE
  WHEN [rawData].[leading] = 0
   AND [rawData].[lagging] = 0
   THEN NULL
  ELSE [rawData].[end_ID]
  END AS [end_ID]
  FROM[rawData]
  WHERE [rawData].[lagging] = 0;

This reply was modified 2 years, 9 months ago by Mr. Brian Gale. Reason: added some code
This reply was modified 2 years, 9 months ago by Mr. Brian Gale.

The above is all just my opinion on what you should do.
As with all advice you find on a random internet forum - you shouldn't blindly follow it. Always test on a test server to see if there is negative side effects before making changes to live!
I recommend you NEVER run "random code" you found online on any system you care about UNLESS you understand and can verify the code OR you don't care if the code trashes your system.

itlk Mr or Mrs. 500 Points: 578 More actions · Answer 4

Thanks for your reply. I think I am missing something: the rawData does not have Name column. Is perhaps cte.Name missing in the select statement?

Also [rawData].[Length] is meant to be rawData.leading?

Thank you.

Mr. Brian Gale SSC-Insane Points: 24689 More actions · Answer 5

That was a code formatting error... I have corrected the code.

The above is all just my opinion on what you should do.
As with all advice you find on a random internet forum - you shouldn't blindly follow it. Always test on a test server to see if there is negative side effects before making changes to live!
I recommend you NEVER run "random code" you found online on any system you care about UNLESS you understand and can verify the code OR you don't care if the code trashes your system.

itlk Mr or Mrs. 500 Points: 578 More actions · Answer 6

itlk

Mr or Mrs. 500

Points: 578

July 27, 2021 at 7:44 pm

#3914422

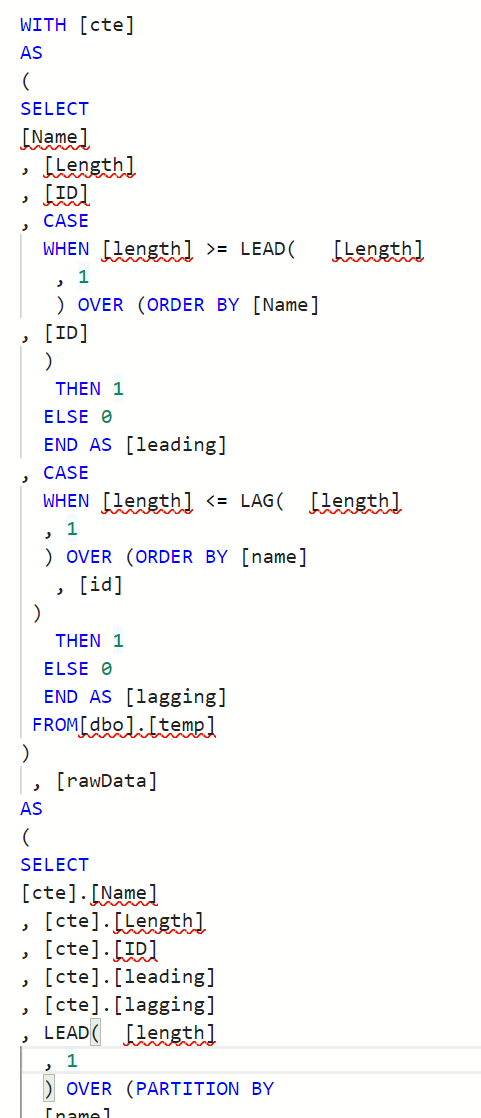

It seems to be worse now:

itlk Mr or Mrs. 500 Points: 578 More actions · Answer 7

I found it: I changed the Temp table for the Test table in your code.

It seems to be working just fine. I will give it a deeper look.

Thank you.
