Summary

This is a feature rich and flexible 'SQL Restore Script Generator' procedure for use in:

Production recovery situations - After a tail log backup or using STOPAT
Test environment refreshes - Parameters using WITH MOVE to override file folder
Point in Time recovery from data lose- Using @StopAt & @StandbyMode parameters to step through.

The inclusion of STOPAT & STANDBY parameters is significant when recovering lost data. If the deletion/truncation happened a week and many full backups ago, none of the other procedures referenced would help. The Restore Script Genie will query backup history and construct a restore script appropriate and optimized to the STOPAT point in time required. The procedure is effectively a single SQL query involving repeated calls to a Common Table Expression (CTE). There are no dynamic SQL, #temporary tables or @table variables used, and the script only reads a few backup history tables in msdb. A script is returned as the result which can and should be carefully verfied before using it.

Procedure

The procedure allows changing the backup file/data/log paths using WITH MOVE, it uses checksum where possible and CHECKDB to verify backups, ignores IS_COPY_ONLY and Symatech, other non SQL, VDI Device type backups. It checks Last_LSN is incremental in the recovery sequence and databases can be left in STANDBY recovery mode to allow stepping through, it can cater for up to 10 striped backup files.

There are a few versions of this type of 'Generate a SQL Restore Script' available, examples:

The sp_RestoreScriptGenie inclusion of STOPAT & STANDBY mode recovery options differentiate it from other scripts,

Examples

To generate a script to restore all user databases, to the most current point in time possible, from the default backup locations, to the existing data and log file locations - run the procedure with no parameters. This might be required following a media failure on the drive hosting the database data files (and assumes current backup history in MSDB), you should always take a tail log backup first if possible before starting to plan restores.

To show options beyond this involving STOPAT, STANDBY and WITH MOVE, a small virtual lab was built with backup history as below.

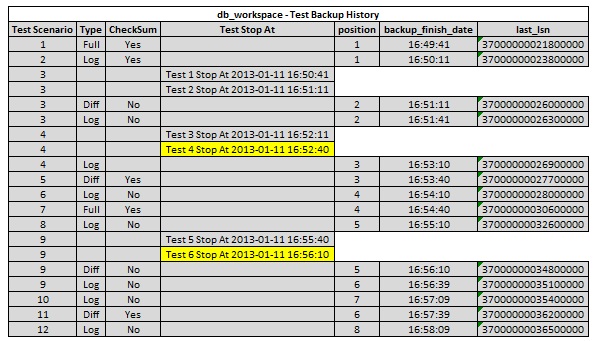

Test Lab Backup History

The table in the appendix has a summary of the backup history for database db_workspace in a virtual test lab.

Example - Recover to the most recent Point in Time

Executing the script below

EXECUTE [dbo].[sp_RestoreScriptGenie]
@Database = 'db_workspace'

Generated the T-SQL script below

RESTORE DATABASE db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace.bak' WITH REPLACE, FILE = 4,CHECKSUM,NORECOVERY, STATS=10, MOVE 'db_workspace' TO 'x:\data\db_workspace.mdf', MOVE 'db_workspace_log' TO 'x:\data\db_workspace_log.ldf'
, MOVE 'db_workspace_FG2' TO 'x:\data\db_workspace_FG2.ndf'
, MOVE 'db_workspace_FG1' TO 'x:\data\db_workspace_FG1.ndf'
;

RESTORE DATABASE db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace.bak' WITH REPLACE, FILE = 6,CHECKSUM,NORECOVERY, STATS=10, MOVE 'db_workspace' TO 'x:\data\db_workspace.mdf', MOVE 'db_workspace_log' TO 'x:\data\db_workspace_log.ldf'
, MOVE 'db_workspace_FG2' TO 'x:\data\db_workspace_FG2.ndf'
, MOVE 'db_workspace_FG1' TO 'x:\data\db_workspace_FG1.ndf'

;RESTORE LOG db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace_log.trn' WITH NORECOVERY, FILE = 8

;RESTORE DATABASE db_workspace WITH RECOVERY

DBCC CHECKDB('db_workspace') WITH NO_INFOMSGS IF @@ERROR > 0 PRINT N'CONSISTENCY PROBLEMS IN DATABASE : db_workspace' ELSE PRINT N'CONSISTENCY GOOD IN DATABASE : db_workspace'

Example - Point In Time Recovery to Test 4

Executing the script below

EXECUTE [dbo].[sp_RestoreScriptGenie]
@Database = 'db_workspace'
,@StopAt = '2013-01-11 16:52:40'

Generated the T-SQL script below

RESTORE DATABASE db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace.bak' WITH REPLACE, FILE = 1,CHECKSUM,NORECOVERY, STATS=10, MOVE 'db_workspace' TO 'x:\data\db_workspace.mdf', MOVE 'db_workspace_log' TO 'x:\data\db_workspace_log.ldf'
, MOVE 'db_workspace_FG2' TO 'x:\data\db_workspace_FG2.ndf'
, MOVE 'db_workspace_FG1' TO 'x:\data\db_workspace_FG1.ndf'

;RESTORE DATABASE db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace.bak' WITH REPLACE, FILE = 2, NORECOVERY, STATS=10, MOVE 'db_workspace' TO 'x:\data\db_workspace.mdf', MOVE 'db_workspace_log' TO 'x:\data\db_workspace_log.ldf'
, MOVE 'db_workspace_FG2' TO 'x:\data\db_workspace_FG2.ndf'
, MOVE 'db_workspace_FG1' TO 'x:\data\db_workspace_FG1.ndf'

;RESTORE LOG db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace_log.trn' WITH NORECOVERY, FILE = 2

;RESTORE LOG db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace_log.trn' WITH NORECOVERY, FILE = 3 ,STOPAT = '2013-01-11 16:52:40'

;RESTORE DATABASE db_workspace WITH RECOVERY

DBCC CHECKDB('db_workspace') WITH NO_INFOMSGS IF @@ERROR > 0 PRINT N'CONSISTENCY PROBLEMS IN DATABASE : db_workspace' ELSE PRINT N'CONSISTENCY GOOD IN DATABASE : db_workspace'

Example - Point In Time Recovery to Test 6, WITH MOVE and STANDBY

Executing the script below

EXECUTE [dbo].[sp_RestoreScriptGenie]
@Database = 'db_workspace'
,@StopAt = '2013-01-11 16:56:10'
,@ToFileFolder = 'D:\SQLData\ReadOptimizedDrive\'
,@ToLogFolder = 'L:\SQLLogs\WriteOptimizedDrive\'
,@StandbyMode = 1

Generated the T-SQL below

RESTORE DATABASE db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace.bak' WITH REPLACE, FILE = 4,CHECKSUM,STANDBY =N'X:\Backups\Temp\db_workspace_ROLLBACK_UNDO.bak ', STATS=10, MOVE 'db_workspace' TO 'D:\SQLData\ReadOptimizedDrive\db_workspace.mdf', MOVE 'db_workspace_log' TO 'L:\SQLLogs\WriteOptimizedDrive\db_workspace_log.ldf'
, MOVE 'db_workspace_FG2' TO 'D:\SQLData\ReadOptimizedDrive\db_workspace_FG2.ndf'
, MOVE 'db_workspace_FG1' TO 'D:\SQLData\ReadOptimizedDrive\db_workspace_FG1.ndf'

;RESTORE LOG db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace_log.trn' WITH STANDBY =N'X:\Backups\Temp\db_workspace_ROLLBACK_UNDO.bak ', FILE = 5

;RESTORE LOG db_workspace FROM DISK = 'X:\Backups\Temp\db_workspace_log.trn' WITH STANDBY =N'X:\Backups\Temp\db_workspace_ROLLBACK_UNDO.bak ', FILE = 6 ,STOPAT = '2013-01-11 16:56:10'

Usage Summary

I've found this procedure useful in a number of situations such as:

Migrating databases using a 'one time' log shipping technique to minimize downtime
Verifying backups
Commissioning development environments
Recoverying lost data by stepping through in STANDBY mode
Whenever a quick generation of a RESTORE script is needed.

Version 2 Plans

To include:

STOPBEFOREMARK for stopping at specific LSN
Options for LiteSpeed and other 3rd party backups possible.
Options for piecemeal file, filegroup and page restores.
Full text index backups

References

http://www.sqlservercentral.com/blogs/robert_davis/2013/01/04/day-3-of-31-days-of-disaster-recovery-determining-files-to-restore-database/ - Guidance on LSN checks included in Version 1.02

http://www.sqlservercentral.com/articles/Backups/93224/ - The article "Importance of Validating Backups" that prompted development of the procedure.

http://sqlserverpedia.com/wiki/Restore_With_Standby - Info for new STANDBY recovery mode option in V1.03

http://sqlblog.com/blogs/adam_machanic/archive/2012/03/22/released-who-is-active-v11-11.aspx - Coding standards and header template

http://www.sqlservercentral.com/blogs/robert_davis/2013/01/12/day-11-of-31-days-of-disaster-converting-lsn-formats/ - STOPBEFOREMARK for V2.0 options to stop at a specific LSN

http://technet.microsoft.com/en-us/sqlserver/ff977043.aspx - Restore Internals

The Procedure

USE master
GO

IF NOT EXISTS (SELECT * FROM INFORMATION_SCHEMA.ROUTINES WHERE ROUTINE_NAME = 'sp_RestoreScriptGenie')
  EXEC ('CREATE PROC dbo.sp_RestoreScriptGenie AS SELECT ''stub version, to be replaced''')
GO

/*********************************************************************************************
Restore Script Generator v1.05 (2013-01-15)
(C) 2012, Paul Brewer

Feedback: mailto:paulbrewer@yahoo.co.uk
Updates: http://paul.dynalias.com/sql

License:
Restore Script Genie is free to download and use for personal, educational, and internal
corporate purposes, provided that this header is preserved. Redistribution or sale
of sp_RestoreScriptGenie, in whole or in part, is prohibited without the author's express
written consent.

Usage examples:

sp_RestoreScriptGenie
  No parameters = Generates RESTORE commands for all USER databases, from actual backup files to existing file locations to most current time, consistency checks, CHECKSUM where possible

sp_RestoreScriptGenie @Database = 'db_workspace', @StopAt = '2012-12-23 12:01:00.000', @StandbyMode = 1
  Generates RESTORE commands for a specific database from the most recent full backup + most recent differential + transaction log backups before to STOPAT.
  Databases left in STANDBY
  Ignores COPY_ONLY backups, restores to default file locations from default backup file.

sp_RestoreScriptGenie @Database = 'db_workspace', @StopAt = '2012-12-23 12:31:00.000', @ToFileFolder = 'c:\temp\', @ToLogFolder = 'c:\temp\' , @BackupDeviceFolder = 'c:\backup\'
  Overrides data file folder, log file folder and backup file folder.
  Generates RESTORE commands for a specific database from most recent full backup, most recent differential + transaction log backups before STOPAT.
  Ignores COPY_ONLY backups, includes WITH MOVE to simulate a restore to a test environment with different folder mapping.

CHANGE LOG:
December 23, 2012 - V1.01 - Release
January 4,2013  - V1.02 - LSN Checks + Bug fix to STOPAT date format
January 11,2013  - V1.03 - SQL Server 2005 compatibility (backup compression problem) & @StandbyMode for stepping through log restores with a readable database
January 14, 2013 - V1.04 - Cope with up to 10 striped backup files
January 15, 2013 - V1.05 - Format of constructed restore script, enclose database name in [ ]
*********************************************************************************************/
ALTER PROC dbo.sp_RestoreScriptGenie
(
  @Database SYSNAME = NULL,
  @ToFileFolder VARCHAR(2000) = NULL,
  @ToLogFolder VARCHAR(2000) = NULL,
  @BackupDeviceFolder VARCHAR(2000) = NULL,
  @StopAt DATETIME = NULL,
  @StandbyMode BIT = 0,
  @IncludeSystemBackups BIT = 0
)
AS
BEGIN

SET NOCOUNT ON;
SET TRANSACTION ISOLATION LEVEL READ UNCOMMITTED;
SET QUOTED_IDENTIFIER ON;
SET ANSI_PADDING ON;
SET CONCAT_NULL_YIELDS_NULL ON;
SET ANSI_WARNINGS ON;
SET NUMERIC_ROUNDABORT OFF;
SET ARITHABORT ON;

IF ISNULL(@StopAt,'') = ''
  SET @StopAt = GETDATE();

--------------------------------------------------------------------------------------------------------------
-- Full backup UNION Differential Backup UNION Log Backup
--------------------------------------------------------------------------------------------------------------
WITH CTE
(
   database_name
  ,current_compatibility_level
  ,Last_LSN
  ,current_is_read_only
  ,current_state_desc
  ,current_recovery_model_desc
  ,has_backup_checksums
  ,backup_size
  ,[type]
  ,backupmediasetid
  ,family_sequence_number
  ,backupfinishdate
  ,physical_device_name
  ,position
)
AS
(
--------------------------------------------------------------------------------------------------------------
-- Full backup (most current or immediately before @StopAt if supplied)
--------------------------------------------------------------------------------------------------------------

SELECT
   bs.database_name
  ,d.[compatibility_level] AS current_compatibility_level
  ,bs.last_lsn
  ,d.[is_read_only] AS current_is_read_only
  ,d.[state_desc] AS current_state_desc
  ,d.[recovery_model_desc] current_recovery_model_desc
  ,bs.has_backup_checksums
  ,bs.backup_size AS backup_size
  ,'D' AS [type]
  ,bs.media_set_id AS backupmediasetid
  ,mf.family_sequence_number
  ,x.backup_finish_date AS backupfinishdate
  ,mf.physical_device_name
  ,bs.position
FROM msdb.dbo.backupset bs

INNER JOIN sys.databases d
  ON bs.database_name = d.name

INNER JOIN
(
  SELECT
    database_name
   ,MAX(backup_finish_date) backup_finish_date
  FROM msdb.dbo.backupset a
  JOIN msdb.dbo.backupmediafamily b
  ON a.media_set_id = b.media_set_id
  WHERE a.[type] = 'D'
  AND b.[Device_Type] = 2
  AND a.is_copy_only = 0
  AND a.backup_finish_date <= ISNULL(@StopAt,a.backup_finish_date)
  GROUP BY database_name
) x
  ON x.database_name = bs.database_name
  AND x.backup_finish_date = bs.backup_finish_date

JOIN msdb.dbo.backupmediafamily mf
  ON mf.media_set_id = bs.media_set_id
  AND mf.family_sequence_number Between bs.first_family_number And bs.last_family_number

WHERE bs.type = 'D'
AND mf.physical_device_name NOT IN ('Nul', 'Nul:')

--------------------------------------------------------------------------------------------------------------
-- Differential backup (most current or immediately before @StopAt if supplied)
--------------------------------------------------------------------------------------------------------------
UNION

SELECT
   bs.database_name
  ,d.[compatibility_level] AS current_compatibility_level
  ,bs.last_lsn
  ,d.[is_read_only] AS current_is_read_only
  ,d.[state_desc] AS current_state_desc
  ,d.[recovery_model_desc] current_recovery_model_desc
  ,bs.has_backup_checksums
  ,bs.backup_size AS backup_size
  ,'I' AS [type]
  ,bs.media_set_id AS backupmediasetid
  ,mf.family_sequence_number
  ,x.backup_finish_date AS backupfinishdate
  ,mf.physical_device_name
  ,bs.position
FROM msdb.dbo.backupset bs

INNER JOIN sys.databases d
  ON bs.database_name = d.name

INNER JOIN
(
  SELECT
    database_name
   ,MAX(backup_finish_date) backup_finish_date
  FROM msdb.dbo.backupset a
  JOIN msdb.dbo.backupmediafamily b
  ON a.media_set_id = b.media_set_id
  WHERE a.[type] = 'I'
  AND b.[Device_Type] = 2
  AND a.is_copy_only = 0
  AND a.backup_finish_date <= ISNULL(@StopAt,GETDATE())
  GROUP BY database_name
) x
  ON x.database_name = bs.database_name
  AND x.backup_finish_date = bs.backup_finish_date

JOIN msdb.dbo.backupmediafamily mf
  ON mf.media_set_id = bs.media_set_id
  AND mf.family_sequence_number Between bs.first_family_number And bs.last_family_number

WHERE bs.type = 'I'
AND mf.physical_device_name NOT IN ('Nul', 'Nul:')
AND bs.backup_finish_date <= ISNULL(@StopAt,GETDATE())

--------------------------------------------------------------------------------------------------------------
-- Log file backups after 1st full backup before @STOPAT, before next full backup after 1st full backup
--------------------------------------------------------------------------------------------------------------
UNION

SELECT
   bs.database_name
  ,d.[compatibility_level] AS current_compatibility_level
  ,bs.last_lsn
  ,d.[is_read_only] AS current_is_read_only
  ,d.[state_desc] AS current_state_desc
  ,d.[recovery_model_desc] current_recovery_model_desc
  ,bs.has_backup_checksums
  ,bs.backup_size AS backup_size
  ,'L' AS [type]
  ,bs.media_set_id AS backupmediasetid
  ,mf.family_sequence_number
  ,bs.backup_finish_date as backupfinishdate
  ,mf.physical_device_name
  ,bs.position

FROM msdb.dbo.backupset bs

INNER JOIN sys.databases d
  ON bs.database_name = d.name

JOIN msdb.dbo.backupmediafamily mf
  ON mf.media_set_id = bs.media_set_id
  AND mf.family_sequence_number Between bs.first_family_number And bs.last_family_number

LEFT OUTER JOIN
(
  SELECT
    database_name
   ,MAX(backup_finish_date) backup_finish_date
  FROM msdb.dbo.backupset a
  JOIN msdb.dbo.backupmediafamily b
  ON a.media_set_id = b.media_set_id
  WHERE a.[type] = 'D'
  AND b.[Device_Type] = 2
  AND a.is_copy_only = 0
  AND a.backup_finish_date <= ISNULL(@StopAt,a.backup_finish_date)
  GROUP BY database_name
) y
  ON bs.database_name = y.Database_name

LEFT OUTER JOIN
(
  SELECT
    database_name
   ,MIN(backup_finish_date) backup_finish_date
  FROM msdb.dbo.backupset a
  JOIN msdb.dbo.backupmediafamily b
   ON a.media_set_id = b.media_set_id
  WHERE a.[type] = 'D'
  AND b.[Device_Type] = 2

  AND a.is_copy_only = 0
  AND a.backup_finish_date > ISNULL(@StopAt,'1 Jan, 1900')
  GROUP BY database_name
) z
  ON bs.database_name = z.database_name

WHERE bs.backup_finish_date > y.backup_finish_date
AND bs.backup_finish_date < ISNULL(z.backup_finish_date,GETDATE())
AND mf.physical_device_name NOT IN ('Nul', 'Nul:')
AND bs.type = 'L'
AND mf.device_type = 2
)

---------------------------------------------------------------
-- Result set below is based on CTE above
---------------------------------------------------------------

SELECT
  a.Command AS TSQL_RestoreCommand_CopyPaste
FROM
(

--------------------------------------------------------------------
-- Most recent full backup
--------------------------------------------------------------------

SELECT
  ';RESTORE DATABASE [' + d.[name] + ']' + SPACE(1) +
  'FROM DISK = ' + '''' +
  CASE ISNULL(@BackupDeviceFolder,'Actual')
    WHEN 'Actual' THEN CTE.physical_device_name
    ELSE @BackupDeviceFolder + SUBSTRING(CTE.physical_device_name,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 1)
  END + '''' + SPACE(1) +

  -- Striped backup files
  CASE ISNULL(Stripe2.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe2.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe2.physical_device_name,LEN(Stripe2.physical_device_name) - CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe3.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe3.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe3.physical_device_name,LEN(Stripe3.physical_device_name) - CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe4.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe4.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe4.physical_device_name,LEN(Stripe4.physical_device_name) - CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe5.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe5.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe5.physical_device_name,LEN(Stripe5.physical_device_name) - CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe6.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe6.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe6.physical_device_name,LEN(Stripe6.physical_device_name) - CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe7.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe7.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe7.physical_device_name,LEN(Stripe7.physical_device_name) - CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe8.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe8.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe8.physical_device_name,LEN(Stripe8.physical_device_name) - CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe9.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe9.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe9.physical_device_name,LEN(Stripe9.physical_device_name) - CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe10.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe10.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe10.physical_device_name,LEN(Stripe10.physical_device_name) - CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 1) END + ''''
  END +

  'WITH REPLACE, FILE = ' + CAST(CTE.Position AS VARCHAR(5)) + ',' +
  CASE CTE.has_backup_checksums WHEN 1 THEN 'CHECKSUM,' ELSE ' ' END +

  CASE @StandbyMode WHEN 0 THEN 'NORECOVERY,' ELSE 'STANDBY =N' + '''' + ISNULL(@BackupDeviceFolder,SUBSTRING(CTE.physical_device_name,1,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name)))) + '\' + d.name + '_ROLLBACK_UNDO.bak ' + '''' + ',' END + SPACE(1) +

  'STATS=10,' + SPACE(1) +
  'MOVE ' + '''' + x.LogicalName + '''' + ' TO ' +
  '''' +
  CASE ISNULL(@ToFileFolder,'Actual')
    WHEN 'Actual' THEN x.PhysicalName
    ELSE @ToFileFolder + SUBSTRING(x.PhysicalName,LEN(x.PhysicalName) - CHARINDEX('\',REVERSE(x.PhysicalName),1) + 2,CHARINDEX('\',REVERSE(x.PhysicalName),1) + 1)
  END + '''' + ',' + SPACE(1) +

  'MOVE ' + '''' + y.LogicalName + '''' + ' TO ' +
  '''' +
  CASE ISNULL(@ToLogFolder,'Actual')
    WHEN 'Actual' THEN y.PhysicalName
    ELSE @ToLogFolder + SUBSTRING(y.PhysicalName,LEN(y.PhysicalName) - CHARINDEX('\',REVERSE(y.PhysicalName),1) + 2,CHARINDEX('\',REVERSE(y.PhysicalName),1) + 1)
  END + '''' AS Command,
  1 AS Sequence,
  d.name AS database_name,
  CTE.physical_device_name AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.databases d
JOIN
(
  SELECT
    DB_NAME(mf.database_id) AS name
   ,mf.Physical_Name AS PhysicalName
   ,mf.Name AS LogicalName
  FROM sys.master_files mf
  WHERE type_desc = 'ROWS'
  AND mf.file_id = 1
) x
ON d.name = x.name

JOIN
(
  SELECT
    DB_NAME(mf.database_id) AS name, type_desc
   ,mf.Physical_Name PhysicalName
   ,mf.Name AS LogicalName
  FROM sys.master_files mf
  WHERE type_desc = 'LOG'
) y
ON d.name = y.name

JOIN CTE
  ON CTE.database_name = d.name

-- Striped backup files (caters for up to 10)
LEFT OUTER JOIN CTE AS Stripe2
  ON Stripe2.database_name = d.name
  AND Stripe2.backupmediasetid = CTE.backupmediasetid
  AND Stripe2.family_sequence_number = 2

LEFT OUTER JOIN CTE AS Stripe3
  ON Stripe3.database_name = d.name
  AND Stripe3.backupmediasetid = CTE.backupmediasetid
  AND Stripe3.family_sequence_number = 3

LEFT OUTER JOIN CTE AS Stripe4
  ON Stripe4.database_name = d.name
  AND Stripe4.backupmediasetid = CTE.backupmediasetid
  AND Stripe4.family_sequence_number = 4

LEFT OUTER JOIN CTE AS Stripe5
  ON Stripe5.database_name = d.name
  AND Stripe5.backupmediasetid = CTE.backupmediasetid
  AND Stripe5.family_sequence_number = 5

LEFT OUTER JOIN CTE AS Stripe6
  ON Stripe6.database_name = d.name
  AND Stripe6.backupmediasetid = CTE.backupmediasetid
  AND Stripe6.family_sequence_number = 6

LEFT OUTER JOIN CTE AS Stripe7
  ON Stripe7.database_name = d.name
  AND Stripe7.backupmediasetid = CTE.backupmediasetid
  AND Stripe7.family_sequence_number = 7

LEFT OUTER JOIN CTE AS Stripe8
  ON Stripe8.database_name = d.name
  AND Stripe8.backupmediasetid = CTE.backupmediasetid
  AND Stripe8.family_sequence_number = 8

LEFT OUTER JOIN CTE AS Stripe9
  ON Stripe9.database_name = d.name
  AND Stripe9.backupmediasetid = CTE.backupmediasetid
  AND Stripe9.family_sequence_number = 9

LEFT OUTER JOIN CTE AS Stripe10
  ON Stripe10.database_name = d.name
  AND Stripe10.backupmediasetid = CTE.backupmediasetid
  AND Stripe10.family_sequence_number = 10

WHERE CTE.[type] = 'D'
AND CTE.family_sequence_number = 1

--------------------------------------------------------------------
-- Most recent differential backup
--------------------------------------------------------------------
UNION

SELECT
  ';RESTORE DATABASE [' + d.[name] + ']' + SPACE(1) +
  'FROM DISK = ' + '''' +
  CASE ISNULL(@BackupDeviceFolder,'Actual')
    WHEN 'Actual' THEN CTE.physical_device_name
    ELSE @BackupDeviceFolder + SUBSTRING(CTE.physical_device_name,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 1)
  END + '''' + SPACE(1) +

  -- Striped backup files
  CASE ISNULL(Stripe2.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe2.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe2.physical_device_name,LEN(Stripe2.physical_device_name) - CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe3.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe3.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe3.physical_device_name,LEN(Stripe3.physical_device_name) - CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe4.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe4.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe4.physical_device_name,LEN(Stripe4.physical_device_name) - CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe5.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe5.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe5.physical_device_name,LEN(Stripe5.physical_device_name) - CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe6.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe6.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe6.physical_device_name,LEN(Stripe6.physical_device_name) - CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe7.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe7.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe7.physical_device_name,LEN(Stripe7.physical_device_name) - CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe8.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe8.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe8.physical_device_name,LEN(Stripe8.physical_device_name) - CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe9.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe9.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe9.physical_device_name,LEN(Stripe9.physical_device_name) - CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe10.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe10.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe10.physical_device_name,LEN(Stripe10.physical_device_name) - CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 1) END + ''''
  END +

  'WITH REPLACE, FILE = ' + CAST(CTE.Position AS VARCHAR(5)) + ',' +
  CASE CTE.has_backup_checksums WHEN 1 THEN 'CHECKSUM,' ELSE ' ' END +

  CASE @StandbyMode WHEN 0 THEN 'NORECOVERY,' ELSE 'STANDBY =N' + '''' + ISNULL(@BackupDeviceFolder,SUBSTRING(CTE.physical_device_name,1,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name)))) + '\' + d.name + '_ROLLBACK_UNDO.bak ' + ''''  + ',' END + SPACE(1) +

  'STATS=10,' + SPACE(1) +
  'MOVE ' + '''' + x.LogicalName + '''' + ' TO ' +
  '''' +
   CASE ISNULL(@ToFileFolder,'Actual')
    WHEN 'Actual' THEN x.PhysicalName
    ELSE @ToFileFolder + SUBSTRING(x.PhysicalName,LEN(x.PhysicalName) - CHARINDEX('\',REVERSE(x.PhysicalName),1) + 2,CHARINDEX('\',REVERSE(x.PhysicalName),1) + 1)
  END + '''' + ',' + SPACE(1) +

  'MOVE ' + '''' + y.LogicalName + '''' + ' TO ' +
  '''' +
  CASE ISNULL(@ToLogFolder,'Actual')
    WHEN 'Actual' THEN y.PhysicalName
    ELSE @ToLogFolder + SUBSTRING(y.PhysicalName,LEN(y.PhysicalName) - CHARINDEX('\',REVERSE(y.PhysicalName),1) + 2,CHARINDEX('\',REVERSE(y.PhysicalName),1) + 1)
  END + '''' AS Command,
  32769/2 AS Sequence,
  d.name AS database_name,
  CTE.physical_device_name AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.databases d

JOIN CTE
  ON CTE.database_name = d.name

-- Striped backup files (caters for up to 10)
LEFT OUTER JOIN CTE AS Stripe2
  ON Stripe2.database_name = d.name
  AND Stripe2.backupmediasetid = CTE.backupmediasetid
  AND Stripe2.family_sequence_number = 2

LEFT OUTER JOIN CTE AS Stripe3
  ON Stripe3.database_name = d.name
  AND Stripe3.backupmediasetid = CTE.backupmediasetid
  AND Stripe3.family_sequence_number = 3

LEFT OUTER JOIN CTE AS Stripe4
  ON Stripe4.database_name = d.name
  AND Stripe4.backupmediasetid = CTE.backupmediasetid
  AND Stripe4.family_sequence_number = 4

LEFT OUTER JOIN CTE AS Stripe5
  ON Stripe5.database_name = d.name
  AND Stripe5.backupmediasetid = CTE.backupmediasetid
  AND Stripe5.family_sequence_number = 5

LEFT OUTER JOIN CTE AS Stripe6
  ON Stripe6.database_name = d.name
  AND Stripe6.backupmediasetid = CTE.backupmediasetid
  AND Stripe6.family_sequence_number = 6

LEFT OUTER JOIN CTE AS Stripe7
  ON Stripe7.database_name = d.name
  AND Stripe7.backupmediasetid = CTE.backupmediasetid
  AND Stripe7.family_sequence_number = 7

LEFT OUTER JOIN CTE AS Stripe8
  ON Stripe8.database_name = d.name
  AND Stripe8.backupmediasetid = CTE.backupmediasetid
  AND Stripe8.family_sequence_number = 8

LEFT OUTER JOIN CTE AS Stripe9
  ON Stripe9.database_name = d.name
  AND Stripe9.backupmediasetid = CTE.backupmediasetid
  AND Stripe9.family_sequence_number = 9

LEFT OUTER JOIN CTE AS Stripe10
  ON Stripe10.database_name = d.name
  AND Stripe10.backupmediasetid = CTE.backupmediasetid
  AND Stripe10.family_sequence_number = 10

JOIN
(
  SELECT
    DB_NAME(mf.database_id) AS name
   ,mf.Physical_Name AS PhysicalName
   ,mf.Name AS LogicalName
  FROM sys.master_files mf
  WHERE type_desc = 'ROWS'
  AND mf.file_id = 1
) x
ON d.name = x.name

JOIN
(
  SELECT
    DB_NAME(mf.database_id) AS name, type_desc
   ,mf.Physical_Name PhysicalName
   ,mf.Name AS LogicalName
  FROM sys.master_files mf
  WHERE type_desc = 'LOG'
) y
ON d.name = y.name

JOIN
(
  SELECT
   database_name,
   Last_LSN,
   backupfinishdate
  FROM CTE
  WHERE [Type] = 'D'
) z
  ON CTE.database_name = z.database_name

WHERE CTE.[type] = 'I'
AND CTE.backupfinishdate > z.backupfinishdate -- Differential backup was after selected full backup
AND CTE.Last_LSN > z.Last_LSN -- Differential Last LSN > Full Last LSN
AND CTE.backupfinishdate < @StopAt
AND CTE.family_sequence_number = 1

-----------------------------------------------------------------------------------------------------------------------------
UNION -- Restore Log backups taken since most recent full, these are filtered in the CTE to those after the full backup date
-----------------------------------------------------------------------------------------------------------------------------

SELECT
  ';RESTORE LOG [' + d.[name] + ']' + SPACE(1) +
  'FROM DISK = ' + '''' + --CTE.physical_device_name + '''' + SPACE(1) +
  CASE ISNULL(@BackupDeviceFolder,'Actual')
   WHEN 'Actual' THEN CTE.physical_device_name
   ELSE @BackupDeviceFolder + SUBSTRING(CTE.physical_device_name,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(CTE.physical_device_name),1) + 1)
  END + '''' +

  -- Striped backup files
  CASE ISNULL(Stripe2.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe2.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe2.physical_device_name,LEN(Stripe2.physical_device_name) - CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe2.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe3.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe3.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe3.physical_device_name,LEN(Stripe3.physical_device_name) - CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe3.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe4.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe4.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe4.physical_device_name,LEN(Stripe4.physical_device_name) - CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe4.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe5.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe5.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe5.physical_device_name,LEN(Stripe5.physical_device_name) - CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe5.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe6.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe6.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe6.physical_device_name,LEN(Stripe6.physical_device_name) - CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe6.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe7.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe7.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe7.physical_device_name,LEN(Stripe7.physical_device_name) - CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe7.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe8.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe8.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe8.physical_device_name,LEN(Stripe8.physical_device_name) - CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe8.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe9.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe9.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe9.physical_device_name,LEN(Stripe9.physical_device_name) - CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe9.physical_device_name),1) + 1) END + ''''
  END +

  CASE ISNULL(Stripe10.physical_device_name,'')
    WHEN '' THEN ''
    ELSE  ', DISK = ' + '''' + CASE ISNULL(@BackupDeviceFolder,'Actual') WHEN 'Actual' THEN Stripe10.physical_device_name ELSE @BackupDeviceFolder + SUBSTRING(Stripe10.physical_device_name,LEN(Stripe10.physical_device_name) - CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 2,CHARINDEX('\',REVERSE(Stripe10.physical_device_name),1) + 1) END + ''''
  END +

  CASE @StandbyMode WHEN 0 THEN ' WITH NORECOVERY,' ELSE ' WITH STANDBY =N' + '''' + ISNULL(@BackupDeviceFolder,SUBSTRING(CTE.physical_device_name,1,LEN(CTE.physical_device_name) - CHARINDEX('\',REVERSE(CTE.physical_device_name)))) + '\' + d.name + '_ROLLBACK_UNDO.bak ' + ''''  + ',' END + SPACE(1) +

  CASE CTE.has_backup_checksums WHEN 1 THEN ' CHECKSUM,' ELSE ' ' END +

  + 'FILE = ' + CAST(CTE.Position AS VARCHAR(5)) +
  CASE CTE.backupfinishdate
    WHEN z.backupfinishdate THEN ' ,STOPAT = ' + '''' + CONVERT(VARCHAR(21),@StopAt,120) + ''''
    ELSE ' '
  END
  AS Command,
  32769 AS Sequence,
  d.name AS database_name,
  CTE.physical_device_name AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.databases d

JOIN CTE
  ON CTE.database_name = d.name

-- Striped backup files (caters for up to 10)
LEFT OUTER JOIN CTE AS Stripe2
  ON Stripe2.database_name = d.name
  AND Stripe2.backupmediasetid = CTE.backupmediasetid
  AND Stripe2.family_sequence_number = 2

LEFT OUTER JOIN CTE AS Stripe3
  ON Stripe3.database_name = d.name
  AND Stripe3.backupmediasetid = CTE.backupmediasetid
  AND Stripe3.family_sequence_number = 3

LEFT OUTER JOIN CTE AS Stripe4
  ON Stripe4.database_name = d.name
  AND Stripe4.backupmediasetid = CTE.backupmediasetid
  AND Stripe4.family_sequence_number = 4

LEFT OUTER JOIN CTE AS Stripe5
  ON Stripe5.database_name = d.name
  AND Stripe5.backupmediasetid = CTE.backupmediasetid
  AND Stripe5.family_sequence_number = 5

LEFT OUTER JOIN CTE AS Stripe6
  ON Stripe6.database_name = d.name
  AND Stripe6.backupmediasetid = CTE.backupmediasetid
  AND Stripe6.family_sequence_number = 6

LEFT OUTER JOIN CTE AS Stripe7
  ON Stripe7.database_name = d.name
  AND Stripe7.backupmediasetid = CTE.backupmediasetid
  AND Stripe7.family_sequence_number = 7

LEFT OUTER JOIN CTE AS Stripe8
  ON Stripe8.database_name = d.name
  AND Stripe8.backupmediasetid = CTE.backupmediasetid
  AND Stripe8.family_sequence_number = 8

LEFT OUTER JOIN CTE AS Stripe9
  ON Stripe9.database_name = d.name
  AND Stripe9.backupmediasetid = CTE.backupmediasetid
  AND Stripe9.family_sequence_number = 9

LEFT OUTER JOIN CTE AS Stripe10
  ON Stripe10.database_name = d.name
  AND Stripe10.backupmediasetid = CTE.backupmediasetid
  AND Stripe10.family_sequence_number = 10

LEFT OUTER JOIN  -- Next full backup after STOPAT
(
  SELECT
   database_name, MIN(BackupFinishDate) AS backup_finish_date
  FROM CTE
  WHERE type = 'D'
  AND backupfinishdate > @StopAt
  GROUP BY database_name

) x
  ON x.database_name = CTE.database_name

LEFT OUTER JOIN -- Highest differential backup date
(
  SELECT database_name, max(backupfinishdate) AS backupfinishdate
  FROM CTE
  WHERE CTE.type = 'I'
  AND CTE.backupfinishdate < @StandbyMode
  GROUP BY database_name
) y
  ON y.database_name = CTE.database_name

LEFT OUTER JOIN -- First log file after STOPAT
(
  SELECT database_name, min(backupfinishdate) AS backupfinishdate
  FROM CTE
  WHERE CTE.type = 'L'
  AND backupfinishdate > @StopAt
  GROUP BY database_name
) z
  ON z.database_name = CTE.database_name

JOIN
(
  SELECT
   database_name,
   MAX(Last_LSN) AS Last_LSN
  FROM CTE
  WHERE CTE.backupfinishdate < ISNULL(@StopAt,GETDATE())
  AND CTE.Type IN ('D','I')
  GROUP BY database_name
) x1
  ON CTE.database_name = x1.database_name

WHERE CTE.[type] = 'L'
AND CTE.backupfinishdate <= ISNULL(x.backup_finish_date,'31 Dec, 2199') -- Less than next full backup
AND CTE.backupfinishdate >= ISNULL(y.backupfinishdate, CTE.backupfinishdate) --Great than or equal to last differential backup
AND CTE.backupfinishdate <= ISNULL(z.backupfinishdate, CTE.backupfinishdate) -- Less than or equal to last file file in recovery chain (IE Log Backup datetime might be after STOPAT)
AND CTE.Last_LSN > x1.Last_LSN -- Differential or Full Last LSN < Log Last LSN
AND CTE.family_sequence_number = 1

--------------------------------------------------------------------
UNION -- Restore WITH RECOVERY
--------------------------------------------------------------------
SELECT
  ';RESTORE DATABASE [' + d.[name] + ']' + SPACE(1) + 'WITH RECOVERY' AS Command,
  32771 AS Sequence,
  d.name AS database_name,
  '' AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.databases d

JOIN CTE
  ON CTE.database_name = d.name

WHERE CTE.[type] = 'D'
AND @StandbyMode = 0

--------------------------------------------------------------------
UNION -- CHECKDB
--------------------------------------------------------------------
SELECT
  ';DBCC CHECKDB(' + '''' + d.[name] + '''' + ') WITH NO_INFOMSGS IF @@ERROR > 0 PRINT N''CONSISTENCY PROBLEMS IN DATABASE : ' + d.name + ''' ELSE PRINT N''CONSISTENCY GOOD IN DATABASE : ' + d.name + '''' AS Command,
  32772 AS Sequence,
  d.name AS database_name,
  '' AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.databases d

JOIN CTE
  ON CTE.database_name = d.name

WHERE CTE.[type] = 'D'
AND @StandbyMode = 0

---------------------------------------------------------------------------------------------------------------------------------------------------
UNION -- MOVE full backup secondary data files, allows for up to 32769/2 file groups
---------------------------------------------------------------------------------------------------------------------------------------------------

SELECT
  ', MOVE ' + '''' + b.name + '''' + ' TO ' +
  '''' +
  CASE ISNULL(@ToFileFolder,'Actual')
    WHEN 'Actual' THEN b.physical_name
    ELSE @ToFileFolder + SUBSTRING(b.Physical_Name,LEN(b.Physical_Name) - CHARINDEX('\',REVERSE(b.Physical_Name),1) + 2,CHARINDEX('\',REVERSE(b.Physical_Name),1) + 1)
  END + '''',
  b.file_id AS Sequence,
  DB_NAME(b.database_id) AS database_name,
  '' AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.master_files b
INNER JOIN CTE
  ON CTE.database_name = DB_NAME(b.database_id)

WHERE CTE.[type] = 'D'
AND b.type_desc = 'ROWS'
AND b.file_id > 2

---------------------------------------------------------------------------------------------------------------------------------------------------
UNION -- MOVE differential backup secondary data files, allows for up to 32769/2 file groups
---------------------------------------------------------------------------------------------------------------------------------------------------

SELECT
  ', MOVE ' + '''' + b.name + '''' + ' TO ' +
  '''' +
  CASE ISNULL(@ToFileFolder,'Actual')
    WHEN 'Actual' THEN b.physical_name
    ELSE @ToFileFolder + SUBSTRING(b.Physical_Name,LEN(b.Physical_Name) - CHARINDEX('\',REVERSE(b.Physical_Name),1) + 2,CHARINDEX('\',REVERSE(b.Physical_Name),1) + 1)
  END + '''',
  ((b.file_id) + (32769/2)) AS Sequence,
  DB_NAME(b.database_id) AS database_name,
  '' AS BackupDevice,
  CTE.backupfinishdate,
  CTE.backup_size

FROM sys.master_files b
INNER JOIN CTE
  ON CTE.database_name = DB_NAME(b.database_id)

WHERE CTE.[type] = 'I'
AND b.type_desc = 'ROWS'
AND b.file_id > 2
AND CTE.backupfinishdate < @StopAt
) a

WHERE a.database_name = ISNULL(@database,a.database_name)
AND (@IncludeSystemBackups = 1 OR a.database_name NOT IN('master','model','msdb'))

ORDER BY
  database_name,
  sequence,
  backupfinishdate

END

T-SQL Restore Script Generator

Summary

Procedure

Examples

Test Lab Backup History

Example - Recover to the most recent Point in Time

Example - Point In Time Recovery to Test 4

Example - Point In Time Recovery to Test 6, WITH MOVE and STANDBY

Usage Summary

Version 2 Plans

References

The Procedure

Example Backup History

Resources

Rate

Share

Categories

Share

Rate

T-SQL Restore Script Generator

Summary

Procedure

Examples

Test Lab Backup History

Example - Recover to the most recent Point in Time

Example - Point In Time Recovery to Test 4

Example - Point In Time Recovery to Test 6, WITH MOVE and STANDBY

Usage Summary

Version 2 Plans

References

The Procedure

Example Backup History

Resources

Rate

Share

Categories

Share

Rate

Related content

Scrubbing Personally Identifiable Information

SQL Server Database RESTORE WITH MOVE or not WITH MOVE

Database Restore Automation

Restoring a SQL Server Database – A Practical Example

Using Page Level Restore as a Disaster Recovery Procedure in SQL Server 2005
