Read data based on date-range in huge table is slow
-
I've got a table here with more than 60 million rows and I want to extract data based on date (WHERE Time>='2023-01-01' AND Time<='2023-01-10' for example). Problem is, it's terribly slow, it takes several minutes.
The clustered index (which I haven't created myself) consists of several columns (bigint, int, varchar(255), datetime, in that order). According to some tests, performance would be better rearranging the index (so that Time comes first), but not sure if I mess up any other queries by doing that.
I've googled alot but haven't came up with any neat tricks yet. Each row doesn't has any useful id's (UNIQUEIDENTIFIER only) so I can't use that either as far as I know.
Any bright ideas?
-
Are you able to share the execution plan (Paste the Plan)? This'll help us understand what the RDBMS is up to, and see if there are any helpful indexes. The Clustered index should ideally be always increasing, so if it's on your always increasing ID, it may be on the right choice of column, but that doesn't stop you created other indexes on the table, I assume you have some other non-clustered indexes on it as well?
Thom~
Excuse my typos and sometimes awful grammar. My fingers work faster than my brain does.
Larnu.uk -
Yeah, there's an index on the id of the table (UNIQUEIDENTIFIER) but I don't think I have any use of that for this query.
I don't think I'm able to share the plan (too much personal stuff..) There's an "Clustered Index Scan" that has 98% cost and takes about 13 minutes to complete.

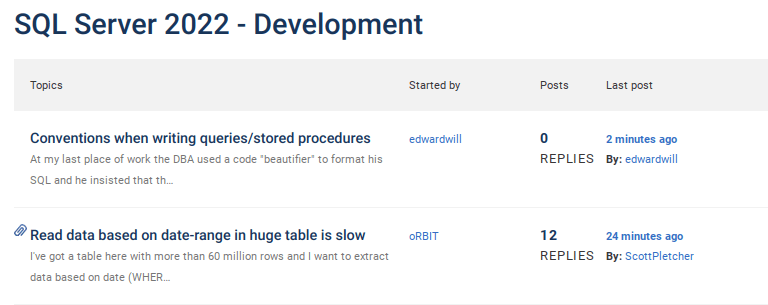

Not sure if this attached screenshot helps?
-
So do you have index on
Time? Does it contain any other columns andINCLUDEthe rest of the columns in theSELECT? Without the query, DDL of the table, indexes, and execution plan, there's not a lot more we can offer here.If the clustered index isn't sorted bytime, it's not going to help the RDBMS filter those rows quickly.Thom~
Excuse my typos and sometimes awful grammar. My fingers work faster than my brain does.
Larnu.uk -
Before changing the clustered index, you should know what other queries are impacted and their importance
Is a non-clustered index on [Time] an option?
Is [Time] a string datatype? Since you compare it with a string-value in the example
-
Time is of datatype "datetime".
"Time" is part of the clustered index, but the clustered index, as stated in the first post, consists of total of 4 columns (bigint, int, varchar(255), datetime, in that order)
I guess a non-clustered "Index" on "Time" would help. Wonder if that would to so I don't have to use include columns aswell, I guess that might result in a massive index..
- oRBIT wrote:
"Time" is part of the clustered index, but the clustered index, as stated in the first post, consists of total of 4 columns (bigint, int, varchar(255), datetime, in that order)
Which isn't helpful to the data engine.
If you were asked to get all the people whose first name was David from a phone book, the index (which lists people in alphabetical order of their last name) isn't going to help you quickly find all the Davids; you'll have to go and check the first name of every single person in the book which is not going to be quick.
The same problem exists for the data engine; you don't have any appropriate indexes for the query being run, and so it has to check the value of every single row in the table.
Thom~
Excuse my typos and sometimes awful grammar. My fingers work faster than my brain does.
Larnu.uk -
If "Time" were the first in order in the index, that would be much better?
- oRBIT wrote:
If "Time" were the first in order in the index, that would be much better?
Like Jo said, I wouldn't just go changing your clustered index without considering the effect it'll have on your other queries. Why are you (apparently) against creating non-clustered indexes? A single, clustered index, isn't going to be helpful to every query you ever run, and changing the clustered index to help with the query "flavour" of the day isn't a solution. If someone chose that clustered index for your environment, presumably they had good reason to do so.
Though, I will admit, the choice of the columns for the clustered value does seem pretty "wide", it's 277 bytes in size.
Thom~
Excuse my typos and sometimes awful grammar. My fingers work faster than my brain does.
Larnu.uk -
For efficient filtering it should be the first column of an index. (so there are statistics about time distribution). As Thom A mentioned, the clustered index won't help much for filtering on time)
What percentage of data will be collected in each interval? (non-clustered indexes have a traversal penalty from root to the leaf nodes of the b-tree)
Compare [Time] with its datatype Time>= @Variable of type datetime (convert(datetime,'2023-01-01') ...)
Test it out on a test-environment? Depending on usage, you might even compress the data
-
I'll be fetching like 50-100 rows only so it's tiny amounts..
I don't have any problems with nonclustered indexes. I was just afraid I might need to include all columns I want to read, with the risk of creating a huge index (although I am no expert here so I might be mistaken)..
I was hoping there could be some trick used to fetch the data so I didn't have to change the indexes (although I already suspected there isn't much to do without altering them..)
-
Instead of changing the clustered index, can you add another index?
Michael L John
If you assassinate a DBA, would you pull a trigger?
To properly post on a forum:
http://www.sqlservercentral.com/articles/61537/ -
How do you typically query the table? If you normally query by a range of datetime, then changing the clus index makes perfect sense.
First, change the SET @table_name_pattern = '%' to match the table you want to analyze. Then run the script below and post the results. We'll then know how your current indexes are being used and can give you much better recommendations.
/*capture changed system settings so that they can be reset to their original values at the end of this script*/
DECLARE @deadlock_priority smallint
DECLARE @transaction_isolation_level smallint
SELECT @deadlock_priority = deadlock_priority, @transaction_isolation_level = transaction_isolation_level
FROM sys.dm_exec_sessions
WHERE session_id = @@SPID
SET DEADLOCK_PRIORITY -8; /*"tell" SQL that if this task somehow gets into a deadlock, cancel THIS task, NOT any other one*/
SET TRANSACTION ISOLATION LEVEL READ UNCOMMITTED
--**********************************************************************************************************************
SET NOCOUNT ON;
DECLARE @filegroup_name nvarchar(128)
DECLARE @include_system_tables bit
DECLARE @list_filegroup_and_drive_summary bit
DECLARE @list_missing_indexes bit
DECLARE @list_missing_indexes_summary bit
DECLARE @list_total_size bit
DECLARE @max_compression int
DECLARE @order_by smallint /* -2=size DESC; 1=table_name ASC; 2=size ASC; */
DECLARE @table_name_pattern sysname
DECLARE @table_name_exclude_pattern sysname = '#%'
SET @list_missing_indexes = 1 --NOTE: can take some time, set to 0 if you don't want to wait.
SET @list_missing_indexes_summary = 0 /*not available unless you uncomment the code for it which requires DelimitedSplit8K function*/
SET @order_by = -2 /* -2=size DESC; 1=table_name ASC; 2=size ASC; */
SET @list_total_size = 1
SET @filegroup_name = '%'
SET @table_name_pattern = '%'
IF @include_system_tables IS NULL
SET @include_system_tables = CASE WHEN DB_NAME() IN ('master', 'msdb', 'tempdb') THEN 1 ELSE 0 END
SET @list_filegroup_and_drive_summary = 0
DECLARE @debug smallint
DECLARE @format_counts smallint --1=',0'; 2/3=with K=1000s,M=1000000s, with 0/1 dec. places;.
DECLARE @include_schema_in_table_names bit
DECLARE @sql_startup_date datetime
DECLARE @total decimal(19, 3)
SELECT @sql_startup_date = create_date
FROM sys.databases WITH (NOLOCK)
WHERE name = 'tempdb'
SET @include_schema_in_table_names = 1
SET @format_counts = 3
SET @debug = 0
IF OBJECT_ID('tempdb.dbo.#index_missing') IS NOT NULL
DROP TABLE dbo.#index_missing
IF OBJECT_ID('tempdb.dbo.#index_operational_stats') IS NOT NULL
DROP TABLE dbo.#index_operational_stats
IF OBJECT_ID('tempdb.dbo.#index_specs') IS NOT NULL
DROP TABLE dbo.#index_specs
IF OBJECT_ID('tempdb.dbo.#index_usage') IS NOT NULL
DROP TABLE dbo.#index_usage
SELECT *
INTO #index_operational_stats
FROM sys.dm_db_index_operational_stats ( DB_ID(), NULL, NULL, NULL )
CREATE TABLE dbo.#index_specs (
object_id int NOT NULL,
index_id int NOT NULL,
min_compression int NULL,
max_compression int NULL,
drive char(1) NULL,
alloc_mb decimal(9, 1) NOT NULL,
alloc_gb AS CAST(alloc_mb / 1024.0 AS decimal(9, 3)),
used_mb decimal(9, 1) NOT NULL,
used_gb AS CAST(used_mb / 1024.0 AS decimal(9, 3)),
rows bigint NULL,
table_mb decimal(9, 1) NULL,
table_gb AS CAST(table_mb / 1024.0 AS decimal(9, 3)),
size_rank int NULL,
approx_max_data_width bigint NULL,
max_days_active int,
UNIQUE CLUSTERED ( object_id, index_id )
) --SELECT * FROM #index_specs
--**********************************************************************************************************************
PRINT 'Started @ ' + CONVERT(varchar(30), GETDATE(), 120)
DECLARE @is_compression_available bit
DECLARE @sql varchar(max)
IF (CAST(SERVERPROPERTY('Edition') AS varchar(40)) NOT LIKE '%Developer%' AND
CAST(SERVERPROPERTY('Edition') AS varchar(40)) NOT LIKE '%Enterprise%')
AND (CAST(SERVERPROPERTY('ProductVersion') AS varchar(30)) NOT LIKE '1[456789]%.%')
SET @is_compression_available = 0
ELSE
SET @is_compression_available = 1
SET @sql = '
INSERT INTO #index_specs ( object_id, index_id,' +
CASE WHEN @is_compression_available = 0 THEN '' ELSE '
min_compression, max_compression,' END + '
alloc_mb, used_mb, rows )
SELECT
base_size.object_id,
base_size.index_id, ' +
CASE WHEN @is_compression_available = 0 THEN '' ELSE '
base_size.min_compression,
base_size.max_compression,' END + '
(base_size.total_pages + ISNULL(internal_size.total_pages, 0)) / 128.0 AS alloc_mb,
(base_size.used_pages + ISNULL(internal_size.used_pages, 0)) / 128.0 AS used_mb,
base_size.row_count AS rows
FROM (
SELECT
dps.object_id,
dps.index_id, ' +
CASE WHEN @is_compression_available = 0 THEN '' ELSE '
MIN(p.data_compression) AS min_compression,
MAX(p.data_compression) AS max_compression,' END + '
SUM(dps.reserved_page_count) AS total_pages,
SUM(dps.used_page_count) AS used_pages,
SUM(CASE WHEN dps.index_id IN (0, 1) THEN dps.row_count ELSE 0 END) AS row_count
FROM sys.dm_db_partition_stats dps ' +
CASE WHEN @is_compression_available = 0 THEN '' ELSE '
INNER JOIN sys.partitions p WITH (NOLOCK) ON
p.partition_id = dps.partition_id ' END + '
--WHERE dps.object_id > 100
WHERE OBJECT_NAME(dps.object_id) LIKE ''' + @table_name_pattern + ''' AND
OBJECT_NAME(dps.object_id) NOT LIKE ''' + @table_name_exclude_pattern + '''
GROUP BY
dps.object_id,
dps.index_id
) AS base_size
LEFT OUTER JOIN (
SELECT
it.parent_id,
SUM(dps.reserved_page_count) AS total_pages,
SUM(dps.used_page_count) AS used_pages
FROM sys.internal_tables it WITH (NOLOCK)
INNER JOIN sys.dm_db_partition_stats dps WITH (NOLOCK) ON
dps.object_id = it.parent_id
WHERE it.internal_type IN ( ''202'', ''204'', ''211'', ''212'', ''213'', ''214'', ''215'', ''216'' )
GROUP BY
it.parent_id
) AS internal_size ON base_size.index_id IN (0, 1) AND internal_size.parent_id = base_size.object_id
'
IF @debug >= 1
PRINT @sql
EXEC(@sql)
--**********************************************************************************************************************
UPDATE [is]
SET approx_max_data_width = index_cols.approx_max_data_width
FROM #index_specs [is]
INNER JOIN (
SELECT index_col_ids.object_id, index_col_ids.index_id,
SUM(CASE WHEN c.max_length = -1 THEN 16 ELSE c.max_length END) AS approx_max_data_width
FROM (
SELECT ic.object_id, ic.index_id, ic.column_id
--,object_name(ic.object_id)
FROM sys.index_columns ic
WHERE
ic.object_id > 100
UNION
SELECT i_nonclus.object_id, i_nonclus.index_id, ic_clus.column_id
--,object_name(i_nonclus.object_id)
FROM sys.indexes i_nonclus
CROSS APPLY (
SELECT ic_clus2.column_id
--,object_name(ic_clus2.object_id),ic_clus2.key_ordinal
FROM sys.index_columns ic_clus2
WHERE
ic_clus2.object_id = i_nonclus.object_id AND
ic_clus2.index_id = 1 AND
ic_clus2.key_ordinal > 0 --technically superfluous, since clus index can't have include'd cols anyway
) AS ic_clus
WHERE
i_nonclus.object_id > 100 AND
i_nonclus.index_id > 1
) AS index_col_ids
INNER JOIN sys.columns c ON c.object_id = index_col_ids.object_id AND c.column_id = index_col_ids.column_id
GROUP BY index_col_ids.object_id, index_col_ids.index_id
) AS index_cols ON index_cols.object_id = [is].object_id AND index_cols.index_id = [is].index_id
UPDATE ispec
SET table_mb = ispec_ranking.table_mb,
size_rank = ispec_ranking.size_rank
FROM #index_specs ispec
INNER JOIN (
SELECT *, ROW_NUMBER() OVER(ORDER BY table_mb DESC, rows DESC, OBJECT_NAME(object_id)) AS size_rank
FROM (
SELECT object_id, SUM(alloc_mb) AS table_mb, MAX(rows) AS rows
FROM #index_specs
GROUP BY object_id
) AS ispec_allocs
) AS ispec_ranking ON
ispec_ranking.object_id = ispec.object_id
--**********************************************************************************************************************
IF @list_missing_indexes = 1
BEGIN
SELECT
IDENTITY(int, 1, 1) AS ident,
DB_NAME(mid.database_id) AS Db_Name,
CONVERT(varchar(10), GETDATE(), 120) AS capture_date,
ispec.size_rank, ispec.table_mb,
CASE WHEN @format_counts = 1 THEN REPLACE(CONVERT(varchar(20), CAST(dps.row_count AS money), 1), '.00', '')
WHEN @format_counts = 2 THEN CAST(CAST(dps.row_count * 1.0 / CASE ca1.row_count_suffix
WHEN 'M' THEN 1000000 WHEN 'K' THEN 1000 ELSE 1 END AS int) AS varchar(20)) + ca1.row_count_suffix
WHEN @format_counts = 3 THEN CAST(CAST(dps.row_count * 1.0 / CASE ca1.row_count_suffix
WHEN 'M' THEN 1000000 WHEN 'K' THEN 1000 ELSE 1 END AS decimal(14, 1)) AS varchar(20)) + ca1.row_count_suffix
ELSE CAST(dps.row_count AS varchar(20)) END AS row_count,
CASE WHEN @include_schema_in_table_names = 1 THEN OBJECT_SCHEMA_NAME(mid.object_id /*, mid.database_id*/) + '.'
ELSE '' END + OBJECT_NAME(mid.object_id /*, mid.database_id*/) AS Table_Name,
mid.equality_columns, mid.inequality_columns,
LEN(mid.included_columns) - LEN(REPLACE(mid.included_columns, ',', '')) + 1 AS incl_col_count,
mid.included_columns,
user_seeks, user_scans, NULL AS max_days_active, /*cj1.max_days_active,*/ unique_compiles,
last_user_seek, last_user_scan,
CAST(avg_total_user_cost AS decimal(9, 3)) AS avg_total_user_cost,
CAST(avg_user_impact AS decimal(9, 3)) AS [avg_user_impact%],
system_seeks, system_scans, last_system_seek, last_system_scan,
CAST(avg_total_system_cost AS decimal(9, 3)) AS avg_total_system_cost,
CAST(avg_system_impact AS decimal(9, 3)) AS [avg_system_impact%],
mid.statement, mid.object_id, mid.index_handle
INTO #index_missing
FROM sys.dm_db_missing_index_details mid WITH (NOLOCK)
INNER JOIN sys.indexes i ON i.object_id = mid.object_id AND i.index_id IN (0, 1) AND i.data_space_id <= 32767
LEFT OUTER JOIN sys.dm_db_missing_index_groups mig WITH (NOLOCK) ON
mig.index_handle = mid.index_handle
LEFT OUTER JOIN sys.dm_db_missing_index_group_stats migs WITH (NOLOCK) ON
migs.group_handle = mig.index_group_handle
LEFT OUTER JOIN sys.dm_db_partition_stats dps WITH (NOLOCK) ON
dps.object_id = mid.object_id AND
dps.index_id IN (0, 1)
OUTER APPLY (
SELECT CASE WHEN dps.row_count >= 1000000 THEN 'M' WHEN dps.row_count >= 1000 THEN 'K' ELSE '' END AS row_count_suffix
) AS ca1
OUTER APPLY (
SELECT ispec.table_mb, ispec.size_rank
FROM dbo.#index_specs ispec
WHERE
ispec.object_id = mid.object_id AND
ispec.index_id IN (0, 1)
) AS ispec
--order by
--DB_NAME, Table_Name, equality_columns
WHERE
1 = 1
AND mid.database_id = DB_ID()
AND OBJECT_NAME(mid.object_id) LIKE @table_name_pattern
ORDER BY
--avg_total_user_cost * (user_seeks + user_scans) DESC,
Db_Name,
CASE WHEN @order_by IN (-2, 2) THEN ispec.size_rank * -SIGN(@order_by) ELSE 0 END,
Table_Name,
equality_columns, inequality_columns,
user_seeks DESC
SELECT *
FROM #index_missing
ORDER BY ident
/*
IF @list_missing_indexes_summary = 1
BEGIN
SELECT
derived.Size_Rank, derived.table_mb,
derived.Table_Name, derived.Equality_Column, derived.Equality#, derived.User_Seeks,
ISNULL((SELECT SUM(user_seeks)
FROM #index_missing im2
OUTER APPLY dbo.DelimitedSplit8K (inequality_columns, ',') ds
WHERE im2.Size_Rank = derived.Size_Rank AND
LTRIM(RTRIM(ds.Item)) = derived.Equality_Column
), 0) AS Inequality_Seeks,
derived.User_Scans, derived.Last_User_Seek, derived.Last_User_Scan,
derived.Max_Days_Active, derived.Avg_Total_User_Cost, derived.Approx_Total_Cost
FROM (
SELECT
Size_Rank, MAX(table_mb) AS table_mb, Table_Name, LTRIM(RTRIM(ds.Item)) AS Equality_Column,
SUM(user_seeks) AS User_Seeks, SUM(user_scans) AS User_Scans,
MAX(last_user_seek) AS Last_User_Seek, MAX(last_user_scan) AS Last_User_Scan,
MIN(max_days_active) AS Max_Days_Active,
MAX(avg_total_user_cost) AS Avg_Total_User_Cost,
(SUM(user_seeks) + SUM(user_scans)) * MAX(avg_total_user_cost) AS Approx_Total_Cost,
MAX(ds.ItemNumber) AS Equality#
FROM #index_missing
CROSS APPLY dbo.DelimitedSplit8K (equality_columns, ',') ds
WHERE equality_columns IS NOT NULL
GROUP BY size_rank, Table_Name, LTRIM(RTRIM(ds.Item))
) AS derived
ORDER BY Size_Rank, Table_Name, Approx_Total_Cost DESC
END --IF
*/
END --IF
PRINT 'Index Usage Stats @ ' + CONVERT(varchar(30), GETDATE(), 120)
--**********************************************************************************************************************
-- list index usage stats (seeks, scans, etc.)
SELECT
IDENTITY(int, 1, 1) AS ident,
DB_NAME() AS db_name,
ispec.size_rank, ispec.alloc_mb - ispec.used_mb AS unused_mb,
CASE WHEN i.data_space_id <= 32767 THEN FILEGROUP_NAME(i.data_space_id) ELSE '{CS}' END AS main_fg_name,
CAST(NULL AS int) AS filler,
CASE WHEN @include_schema_in_table_names = 1 THEN OBJECT_SCHEMA_NAME(i.object_id /*, DB_ID()*/) + '.'
ELSE '' END + OBJECT_NAME(i.object_id /*, i.database_id*/) AS Table_Name,
key_cols AS key_cols, nonkey_cols AS nonkey_cols,
LEN(nonkey_cols) - LEN(REPLACE(nonkey_cols, ',', '')) + 1 AS nonkey_count,
CAST(NULL AS varchar(100)) AS filler2,
ius.user_seeks, ius.user_scans, --ius.user_seeks + ius.user_scans AS total_reads,
ius.user_lookups, ius.user_updates,
CASE WHEN @format_counts = 1 THEN REPLACE(CONVERT(varchar(20), CAST(dps.row_count AS money), 1), '.00', '')
WHEN @format_counts = 2 THEN CAST(CAST(dps.row_count * 1.0 / CASE ca1.row_count_suffix
WHEN 'M' THEN 1000000 WHEN 'K' THEN 1000 ELSE 1 END AS int) AS varchar(20)) + ca1.row_count_suffix
WHEN @format_counts = 3 THEN CAST(CAST(dps.row_count * 1.0 / CASE ca1.row_count_suffix
WHEN 'M' THEN 1000000 WHEN 'K' THEN 1000 ELSE 1 END AS decimal(14, 1)) AS varchar(20)) + ca1.row_count_suffix
ELSE CAST(dps.row_count AS varchar(20)) END AS row_count,
ispec.alloc_gb AS index_gb, ispec.table_gb,
SUBSTRING('NY', CAST(i.is_primary_key AS int) + CAST(i.is_unique_constraint AS int) + 1, 1) +
CASE WHEN i.is_unique = CAST(i.is_primary_key AS int) + CAST(i.is_unique_constraint AS int) THEN ''
ELSE '.' + SUBSTRING('NY', CAST(i.is_unique AS int) + 1, 1) END AS [Uniq?],
REPLACE(i.name, oa1.table_name, '~') AS index_name,
i.index_id,
ispec.approx_max_data_width AS [data_width],
CAST(CAST(ispec.used_mb AS float) * 1024.0 * 1024.0 / NULLIF(dps.row_count, 0) AS int) AS cmptd_row_size,
CASE
WHEN ispec.max_compression IS NULL THEN '(Not applicable)'
WHEN ispec.max_compression = 2 THEN 'Page'
WHEN ispec.max_compression = 1 THEN 'Row'
WHEN ispec.max_compression = 0 THEN ''
ELSE '(Unknown)' END AS max_compression,
i.fill_factor,
dios.leaf_delete_count + dios.leaf_insert_count + dios.leaf_update_count as leaf_mod_count,
dios.range_scan_count, dios.singleton_lookup_count,
DATEDIFF(DAY, STATS_DATE ( i.object_id , i.index_id ), GETDATE()) AS stats_days_old,
DATEDIFF(DAY, CASE
WHEN o.create_date > @sql_startup_date AND @sql_startup_date > o.modify_date THEN o.create_date
WHEN o.create_date > @sql_startup_date AND o.modify_date > @sql_startup_date THEN o.modify_date
ELSE @sql_startup_date END, GETDATE()) AS max_days_active,
dios.row_lock_count, dios.row_lock_wait_in_ms,
dios.page_lock_count, dios.page_lock_wait_in_ms,
ius.last_user_seek, ius.last_user_scan,
ius.last_user_lookup, ius.last_user_update,
fk.Reference_Count AS fk_ref_count,
ius2.row_num,
ius.system_seeks, ius.system_scans, ius.system_lookups, ius.system_updates,
ius.last_system_seek, ius.last_system_scan, ius.last_system_lookup, ius.last_system_update,
GETDATE() AS capture_date
INTO #index_usage
FROM sys.indexes i WITH (NOLOCK)
INNER JOIN sys.objects o WITH (NOLOCK) ON
o.object_id = i.object_id
INNER JOIN dbo.#index_specs ispec ON
ispec.object_id = i.object_id AND
ispec.index_id = i.index_id
OUTER APPLY (
SELECT CASE WHEN EXISTS(SELECT 1 FROM #index_specs [is] WHERE [is].object_id = i.object_id AND [is].index_id = 1)
THEN 1 ELSE 0 END AS has_clustered_index
) AS cj2
OUTER APPLY (
SELECT STUFF((
SELECT
', ' + COL_NAME(ic.object_id, ic.column_id)
FROM sys.index_columns ic WITH (NOLOCK)
WHERE
ic.key_ordinal > 0 AND
ic.object_id = i.object_id AND
ic.index_id = i.index_id
ORDER BY
ic.key_ordinal
FOR XML PATH('')
), 1, 2, '')
) AS key_cols (key_cols)
OUTER APPLY (
SELECT STUFF((
SELECT
', ' + COL_NAME(ic.object_id, ic.column_id)
FROM sys.index_columns ic WITH (NOLOCK)
WHERE
ic.key_ordinal = 0 AND
ic.object_id = i.object_id AND
ic.index_id = i.index_id
ORDER BY
COL_NAME(ic.object_id, ic.column_id)
FOR XML PATH('')
), 1, 2, '')
) AS nonkey_cols (nonkey_cols)
LEFT OUTER JOIN sys.dm_db_partition_stats dps WITH (NOLOCK) ON
dps.object_id = i.object_id AND
dps.index_id = i.index_id
LEFT OUTER JOIN sys.dm_db_index_usage_stats ius WITH (NOLOCK) ON
ius.database_id = DB_ID() AND
ius.object_id = i.object_id AND
ius.index_id = i.index_id
LEFT OUTER JOIN (
SELECT
database_id, object_id, MAX(user_scans) AS user_scans,
ROW_NUMBER() OVER (ORDER BY MAX(user_scans) DESC) AS row_num --user_scans|user_seeks+user_scans
FROM sys.dm_db_index_usage_stats WITH (NOLOCK)
WHERE
database_id = DB_ID()
--AND index_id > 0
GROUP BY
database_id, object_id
) AS ius2 ON
ius2.database_id = DB_ID() AND
ius2.object_id = i.object_id
LEFT OUTER JOIN (
SELECT
referenced_object_id, COUNT(*) AS Reference_Count
FROM sys.foreign_keys WITH (NOLOCK)
WHERE
is_disabled = 0
GROUP BY
referenced_object_id
) AS fk ON
fk.referenced_object_id = i.object_id
LEFT OUTER JOIN #index_operational_stats dios ON
dios.object_id = i.object_id AND
dios.index_id = i.index_id
OUTER APPLY (
SELECT OBJECT_NAME(i.object_id/*, DB_ID()*/) AS table_name
) AS oa1
OUTER APPLY (
SELECT CASE WHEN dps.row_count >= 1000000 THEN 'M' WHEN dps.row_count >= 1000 THEN 'K' ELSE '' END AS row_count_suffix
) AS ca1
WHERE
--i.object_id > 100 AND
(i.is_disabled = 0 OR @order_by IN (-1, 1)) AND
i.is_hypothetical = 0 AND
i.data_space_id <= 32767 AND
--i.type IN (0, 1, 2) AND
o.type NOT IN ( 'IF', 'IT', 'TF', 'TT' ) AND
(
o.name LIKE @table_name_pattern AND
o.name NOT LIKE 'dtprop%' AND
o.name NOT LIKE 'filestream[_]' AND
o.name NOT LIKE 'MSpeer%' AND
o.name NOT LIKE 'MSpub%' AND
--o.name NOT LIKE 'tmp[_]%' AND
--o.name NOT LIKE 'queue[_]%' AND
--(DB_NAME() IN ('master', 'msdb') OR o.name NOT LIKE 'sys%')
(@include_system_tables = 1 OR o.name NOT LIKE 'sys%')
--AND o.name NOT LIKE 'tmp%'
) AND
(@filegroup_name IS NULL OR CASE WHEN i.data_space_id <= 32767 THEN FILEGROUP_NAME(i.data_space_id) ELSE '{CS}' END LIKE @filegroup_name) AND
(@max_compression IS NULL OR ispec.max_compression <= @max_compression)
ORDER BY
--cj2.has_clustered_index, ispec.size_rank, --heaps first, by size
db_name,
--i.index_id,
--ius.user_seeks - ius.user_scans,
CASE WHEN @order_by IN (-2, 2) THEN ispec.size_rank * -SIGN(@order_by) ELSE 0 END,
--ius.user_scans DESC,
--ius2.row_num, --user_scans&|user_seeks
table_name,
-- list clustered index first, if any, then other index(es)
CASE WHEN i.index_id IN (0, 1) THEN 1 ELSE 2 END,
key_cols
OPTION (MAXDOP 3, RECOMPILE)
SELECT *
FROM #index_usage
ORDER BY ident
IF @list_total_size > 1
SELECT SUM(index_gb) AS Total_Size_GB
FROM #index_usage
IF @list_filegroup_and_drive_summary = 1
SELECT
LEFT(df.physical_name, 1) AS drive,
FILEGROUP_NAME(au_totals.data_space_id) AS filegroup_name,
au_totals.total_mb AS total_fg_mb,
au_totals.used_mb AS used_fg_mb,
au_totals.total_mb - au_totals.used_mb AS free_fg_mb,
CAST(df.size / 128.0 AS decimal(9, 3)) AS file_size_mb
FROM (
SELECT
au.data_space_id,
CAST(SUM(au.total_pages) / 128.0 AS decimal(9, 3)) AS total_mb,
CAST(SUM(au.used_pages) / 128.0 AS decimal(9, 3)) AS used_mb
FROM sys.allocation_units au
INNER JOIN sys.filegroups fg ON
fg.data_space_id = au.data_space_id
GROUP BY au.data_space_id WITH ROLLUP
) AS au_totals
INNER JOIN sys.database_files df ON
df.data_space_id = au_totals.data_space_id
ORDER BY filegroup_name, drive
PRINT 'Ended @ ' + CONVERT(varchar(30), GETDATE(), 120)
--**********************************************************************************************************************
/*reset settings to their original values*/
SET DEADLOCK_PRIORITY @deadlock_priority
IF @transaction_isolation_level = 1
SET TRANSACTION ISOLATION LEVEL READ UNCOMMITTED
ELSE
IF @transaction_isolation_level = 2
SET TRANSACTION ISOLATION LEVEL READ COMMITTED
ELSE
IF @transaction_isolation_level = 3
SET TRANSACTION ISOLATION LEVEL REPEATABLE READ
ELSE
IF @transaction_isolation_level = 4
SET TRANSACTION ISOLATION LEVEL SERIALIZABLE
ELSE
IF @transaction_isolation_level = 5
SET TRANSACTION ISOLATION LEVEL SNAPSHOT
/*end of script*/SQL DBA,SQL Server MVP(07, 08, 09) "It's a dog-eat-dog world, and I'm wearing Milk-Bone underwear." "Norm", on "Cheers". Also from "Cheers", from "Carla": "You need to know 3 things about Tortelli men: Tortelli men draw women like flies; Tortelli men treat women like flies; Tortelli men's brains are in their flies".
-
I think the topic is "bugged"... I got a notification of a response from Scott, and the forum shows they were the last to reply, but I don't see it... :/ Might be due to the volume of spam this question got earlier.
And now after I post, a page 2 appears... Odd.
Thom~
Excuse my typos and sometimes awful grammar. My fingers work faster than my brain does.
Larnu.uk - Thom A wrote:
I think the topic is "bugged"... I got a notification of a response from Scott, and the forum shows they were the last to reply, but I don't see it... :/ Might be due to the volume of spam this question got earlier.
And now after I post, a page 2 appears... Odd.
There is a known error that the first comment on a new page doesn't generate the next page button, so you can't get to it unless you edit the URL to have 'page/2' at the end.
Viewing 15 posts - 1 through 15 (of 23 total)
You must be logged in to reply to this topic. Login to reply
