Send a Database Query Result as Email via Logic App in HTML format using Azure Data Factory


(2020-June-07) It is a very simple concept, you have a database query result, either a direct database table output or a stored procedure returned result that needs to be sent as email notification. This email could serve as a status report of your daily data processing job or alert notification with some metrics that require immediate attention, and you want to be as user-friendly as possible with this message aka HTML format for your dataset is required.

I've built this solution approach over a year go and wanted to document and share it after recently using it in one of my projects. Again, I agree, there other more or less effective ways to achieve the very same goal, this blog post is just a recollection of my efforts to send HTML formatted SQL query results using Azure Data Factory and Logic App.

(A) Database Query

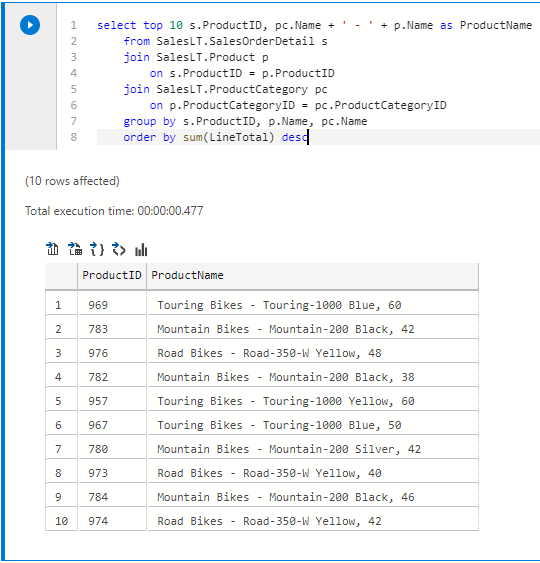

Let's say I want to send an email message with the Top 10 Selling Products using Microsoft AdventureWorks Sales LT database:

I also created a stored procedure to prepare an HTML output result. This where the whole trick is created (or the purpose for this blog post = spoiler alert :-). Knowing, that my Azure Logic App to transmit email message usually takes one variable for email body message then this drives my efforts to convert SQL based multiple records' result into a single string data structure along with HTML formatting options applied.

1) First I need to use <li> HTML tag to list all of my dataset records
2) Then I need to wrap this list of items with the <ol> HTML tag to add numbers for each of the lines (your case might be different: a table definition or text coloring might be necessary).

Achieving my first requirement was easy by combining all the data elements into one column with the "li" name, and the second requirement was accomplished by converting all my records into one data cell with FOR XML RAW ('') option and adding "ol" as my ROOT.

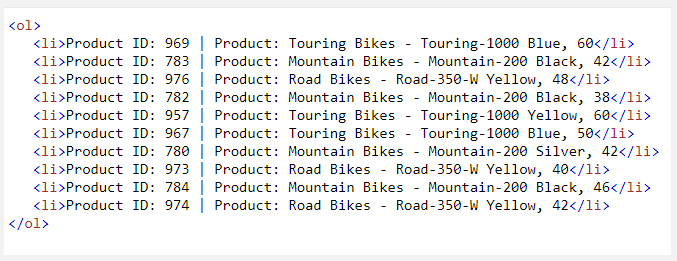

The output of this query is not very pretty but you need to see how my ugly duckling converts into a beautiful HTML swan 🙂

The rest is easy.

(B) Azure Logic App

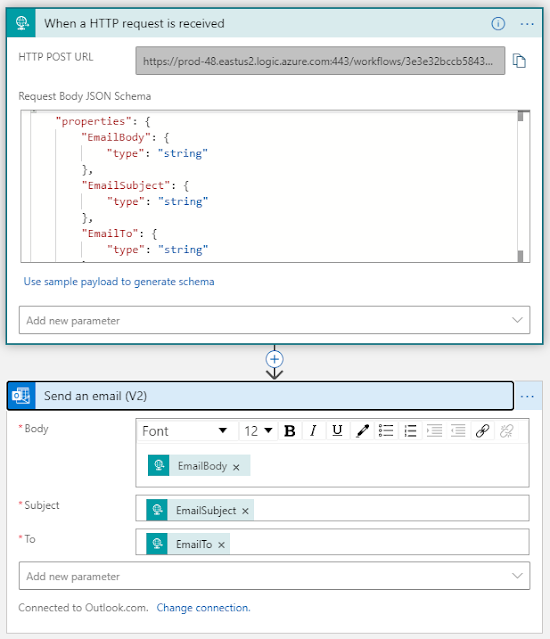

My Logic App has an HTTP trigger and one "Send an email" action

(C) Azure Data Factory

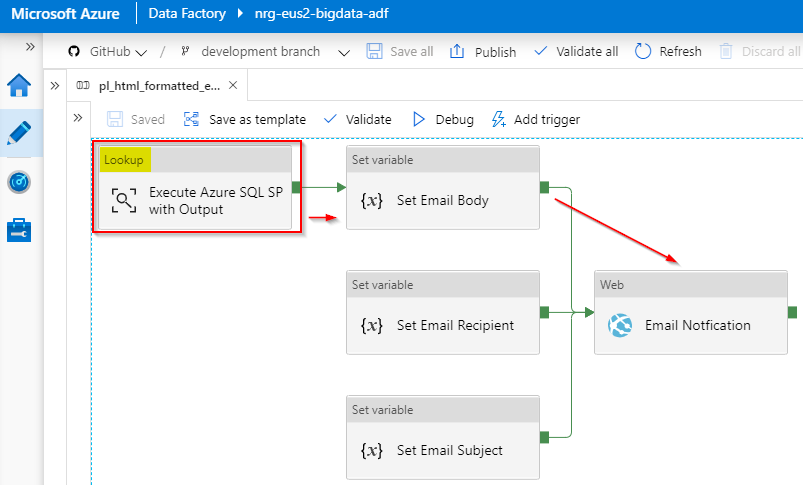

The main job of my Azure Data Factory (ADF) pipeline is done by the Lookup activity, the only ADF activity that could return output result of a SQL Server stored procedure, regular Stored Procedure Activity in ADF won't help me with this.

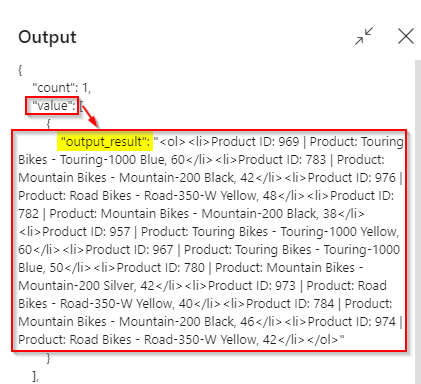

The output of my Lookup activity looks ugly as expected, but we only care that it should come out as one single string data element:

(D) Received HTML formated email message

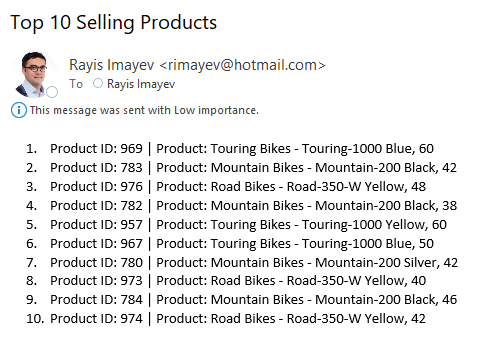

After passing the output of my stored procedure via ADF Lookup activity to my Logic App, I received an email message as I expected: all lines formatted and nothing more.

Little did I know how much can be done with this FOR XML T-SQL clause and embedding HTML tags within.
My data adventure continues! 🙂
